0919-2-15-20-89-14-11-0

Active

Mill-Max Manufacturing Corp.

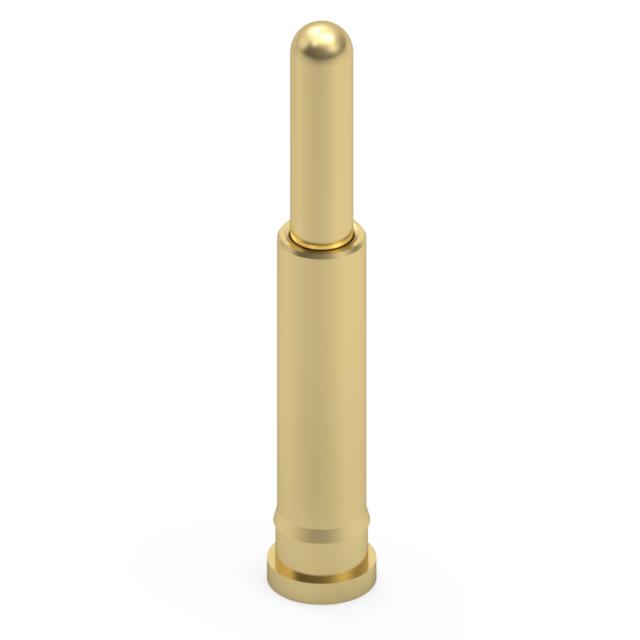

STANDARD SPRING LOADED PIN

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

STANDARD SPRING LOADED PIN

Technical Specifications

Parameters and characteristics for this part

Specification	0919-2-15-20-89-14-11-0

Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Contact Material	Brass Alloy
Contact Type	Sleeve & Plunger (Pogo Pins)
Current Rating (Amps)	5.2 A
Mating Cycles	1000000
Minimum Working Height [Min]	7.65 mm
Minimum Working Height [Min]	0.301 in
Mounting Type	Surface Mount
Operating Force - Initial	25 gf
Operating Force - Mid Compression	100 gf
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pad Layout Dimension [diameter]	1.83 mm
Pad Layout Dimension [diameter]	0.072 in
Plunger Size [diameter]	0.042 in
Plunger Size [diameter]	1.07 mm
Recommended Working Height	9.14 mm
Recommended Working Height	0.36 in

Part	Operating Force - Mid Compression	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Minimum Working Height [Min]	Minimum Working Height [Min]	Recommended Working Height	Recommended Working Height	Plunger Size [diameter]	Plunger Size [diameter]	Operating Force - Initial	Contact Finish	Mating Cycles	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Pad Layout Dimension [diameter]	Pad Layout Dimension [diameter]	Current Rating (Amps)	Contact Material
Mill-Max Manufacturing Corp. 0919-2-15-20-89-14-11-0	100 gf	-55 °C	125 °C	Surface Mount	7.65 mm	0.301 in	9.14 mm	0.36 in	0.042 in	1.07 mm	25 gf	Gold	1000000	0.51 µm	20 µin	Sleeve & Plunger (Pogo Pins)	1.83 mm	0.072 in	5.2 A	Brass Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.41

General part information

Contact Spring Surface Mount
