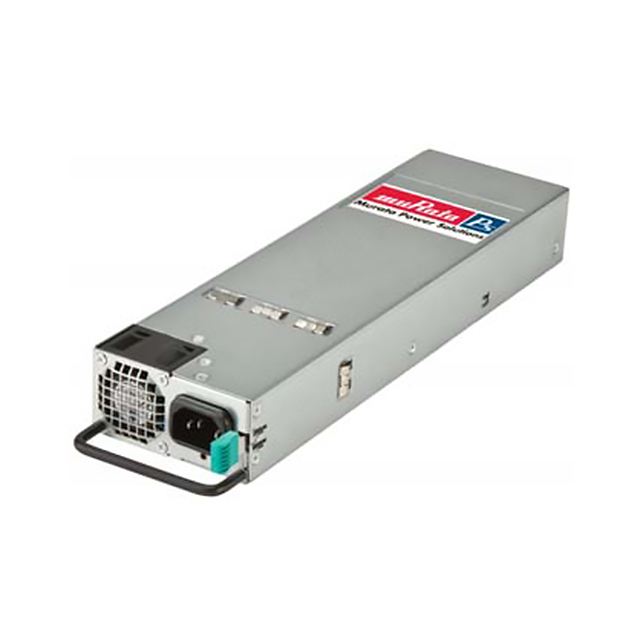

D1U3CS-W-1200-12-HA4C
ActiveMurata Power Solutions Inc.
AC/DC CONVERTER 12V 1200W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D1U3CS-W-1200-12-HA4C
ActiveMurata Power Solutions Inc.
AC/DC CONVERTER 12V 1200W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D1U3CS-W-1200-12-HA4C |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, TUV, CE, cCSAus |
| Current - Output 1 | 98.3 A |
| Efficiency | 92 % |
| Features | I2C Interface, Remote Sense, Hot Swappable, Load Sharing, PMBus™, PFC, Universal Input, Standby Output |
| Mounting Type | Rack Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Power (Watts) | 1200 W |
| Size / Dimension [x] | 279.4 mm |
| Size / Dimension [x] | 11 in |
| Size / Dimension [y] | 81.3 mm |
| Size / Dimension [y] | 3.2 in |
| Size / Dimension [z] | 1.57 " |
| Size / Dimension [z] | 39.9 mm |
| Type | Front End |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
D1U3CS-W Series
AC/DC CONVERTER 12V 1200W
| Part | Current - Output 1 | Voltage - Isolation | Efficiency | Type | Voltage - Output 1 | Approval Agency | Features | Applications | Number of Outputs | Mounting Type | Power (Watts) | Voltage - Input [Min] | Voltage - Input [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. D1U3CS-W-1200-12-HA4C | 98.3 A | 3000 V | 92 % | Front End | 12 V | CB, cCSAus, CE, TUV | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | ITE (Commercial) | 1 | Rack Mount | 1200 W | 90 VAC | 264 VAC | 1.57 " | 81.3 mm | 279.4 mm | 39.9 mm | 11 in | 3.2 in | -10 °C | 50 °C |
Description
General part information
D1U3CS-W Series
Front End AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
