CES-102-02-T-S

Active

Samtec Inc.

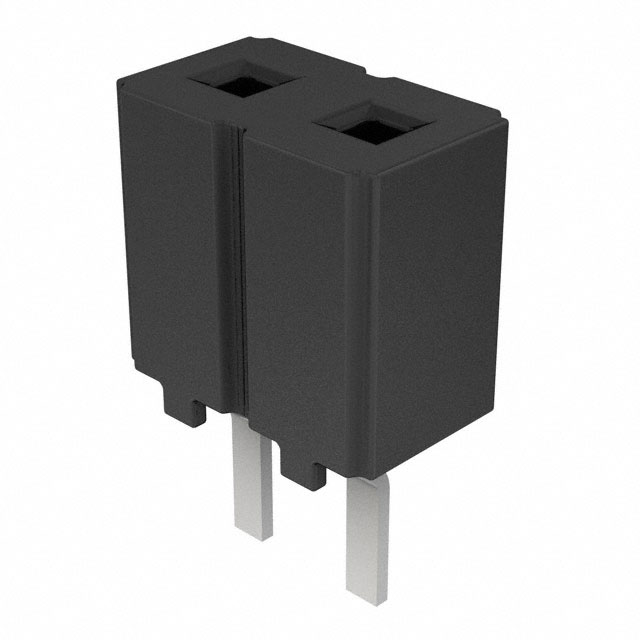

CONN RCPT 2POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCES Datasheet CES Series Other Related Documents 01 +1

CES-102-02-T-S

Active

Samtec Inc.

CONN RCPT 2POS 0.1 TIN PCB

Deep-Dive with AI

DocumentsCES Datasheet CES Series Other Related Documents 01 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CES-102-02-T-S

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post [x]	5.66 mm
Contact Length - Post [x]	0.223 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

CES-102 Series

Part	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Contact Finish - Mating	Fastening Type	Material Flammability Rating	Termination	Contact Material	Number of Positions Loaded	Insulation Material	Insulation Color	Mounting Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height
Samtec Inc. CES-102-02-G-S	0.1 in	2.54 mm	0.51 µm	20 µin	Receptacle	3 µin	0.076 µm	1	Gold	Push-Pull	UL94 V-0	Solder	Phosphor Bronze	All	Polybutylene Terephthalate (PBT)	Black	Through Hole	Female Socket	-55 °C	125 °C	2	Square	5.66 mm	0.223 in	Gold
Samtec Inc. CES-102-01-T-S	0.1 in	2.54 mm			Receptacle			1		Push-Pull	UL94 V-0	Solder	Phosphor Bronze	All	Polybutylene Terephthalate (PBT)	Black	Through Hole	Female Socket	-55 °C	105 ░C	2	Square			Tin	0.128 "	3.25 mm
Samtec Inc. CES-102-01-T-D	0.1 in	2.54 mm			Receptacle			2		Push-Pull	UL94 V-0	Solder	Phosphor Bronze	All	Polybutylene Terephthalate (PBT)	Black	Through Hole	Female Socket	-55 °C	105 ░C	4	Square			Tin	0.128 "	3.25 mm	2.54 mm	0.1 in
Samtec Inc. CES-102-02-S-S	0.1 in	2.54 mm	0.76 Ám	30 Áin	Receptacle			1	Gold	Push-Pull	UL94 V-0	Solder	Phosphor Bronze	All	Polybutylene Terephthalate (PBT)	Black	Through Hole	Female Socket	-55 °C	125 °C	2	Square	5.66 mm	0.223 in	Tin
Samtec Inc. CES-102-02-G-S-RA	0.1 in	2.54 mm	0.51 µm	20 µin	Receptacle	3 µin	0.076 µm	1	Gold	Push-Pull	UL94 V-0	Solder	Phosphor Bronze	All	Polybutylene Terephthalate (PBT)	Black	Through Hole Right Angle	Female Socket	-55 °C	125 °C	2	Square	3.05 mm	0.12 in	Gold					3.05 mm	0.12 in
Samtec Inc. CES-102-02-L-S	0.1 in	2.54 mm	0.25 çm	10 çin	Receptacle			1	Gold	Push-Pull	UL94 V-0	Solder	Phosphor Bronze	All	Polybutylene Terephthalate (PBT)	Black	Through Hole	Female Socket	-55 °C	125 °C	2	Square	5.66 mm	0.223 in	Tin
Samtec Inc. CES-102-02-T-S	0.1 in	2.54 mm			Receptacle			1		Push-Pull	UL94 V-0	Solder	Phosphor Bronze	All	Polybutylene Terephthalate (PBT)	Black	Through Hole	Female Socket	-55 °C	105 ░C	2	Square	5.66 mm	0.223 in	Tin
Samtec Inc. CES-102-01-G-S	0.1 in	2.54 mm	0.51 µm	20 µin	Receptacle	3 µin	0.076 µm	1	Gold	Push-Pull	UL94 V-0	Solder	Phosphor Bronze	All	Polybutylene Terephthalate (PBT)	Black	Through Hole	Female Socket	-55 °C	125 °C	2	Square			Gold	0.128 "	3.25 mm
Samtec Inc. CES-102-01-F-S	0.1 in	2.54 mm	0.076 µm	3 µin	Receptacle			1	Gold	Push-Pull	UL94 V-0	Solder	Phosphor Bronze	All	Polybutylene Terephthalate (PBT)	Black	Through Hole	Female Socket	-55 °C	125 °C	2	Square			Tin	0.128 "	3.25 mm
Samtec Inc. CES-102-01-L-S	0.1 in	2.54 mm	0.25 çm	10 çin	Receptacle			1	Gold	Push-Pull	UL94 V-0	Solder	Phosphor Bronze	All	Polybutylene Terephthalate (PBT)	Black	Through Hole	Female Socket	-55 °C	125 °C	2	Square			Tin	0.128 "	3.25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.52
		10	$ 0.39
		100	$ 0.30
		500	$ 0.25
		1000	$ 0.23
		5000	$ 0.20
		10000	$ 0.18
