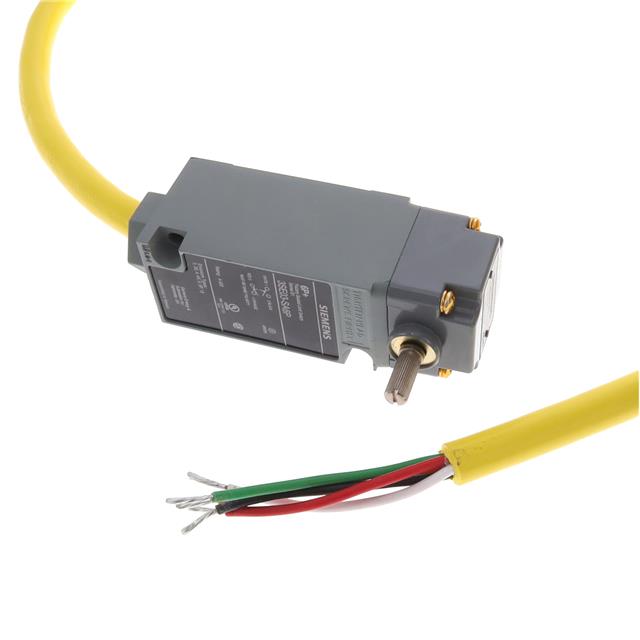

3SE03AR16P
ActiveSiemens
SWITCH LIMIT SIDE ROTARY
Deep-Dive with AI
Search across all available documentation for this part.
3SE03AR16P
ActiveSiemens
SWITCH LIMIT SIDE ROTARY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3SE03AR16P |
|---|---|
| Actuator Type | Side Rotary - No Lever |
| Circuit | DPST-NO/NC |
| Mounting Type | Chassis Mount |
| Switch Function | Off-Mom, On-Mom |
| Termination Style | Cable Leads |
3SE03 Series
| Part | Mounting Type | Termination Style | Circuit | Actuator Type | Switch Function | For Use With/Related Products | Accessory Type |
|---|---|---|---|---|---|---|---|
Siemens | Chassis Mount | Screw Terminal | DPST-NC | ||||
Siemens | Chassis Mount | Cable Leads | DPST-NO/NC | Side Rotary - No Lever | Off-Mom On-Mom | ||
Siemens | Snap Action Switches | Head | |||||
Siemens | Chassis Mount | Screw Terminal | DPST-NO/NC | Side Rotary - No Lever | Off-Mom On-Mom | ||
Siemens | 4PST-2NO/2NC | Side Rotary - No Lever | Off-Mom On-Mom | ||||
Siemens | Chassis Mount | Cable Leads | DPST-NO/NC | Side Rotary - No Lever | Off-On On-Off | ||
Siemens | 4PST-2NO/2NC | Side Plunger | Off-On On-Off | ||||
Siemens | Chassis Mount | Connector | DPST-NO/NC | Side Plunger | Off-On On-Off | ||
Siemens | Chassis Mount | Cable Leads | DPST-NO/NC | Side Plunger | Off-On On-Off | ||
Siemens | Chassis Mount | Screw Terminal | DPST-NO/NC | Side Rotary - No Lever | Off-Mom On-Mom |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 275.79 | |
| 10 | $ 257.40 | |||
| 25 | $ 244.53 | |||
Description
General part information
3SE03 Series
Switch DPST-NO/NC Chassis Mount
Documents
Technical documentation and resources
No documents available
