4-1419136-3
ActiveTE Connectivity Potter & Brumfield Relays

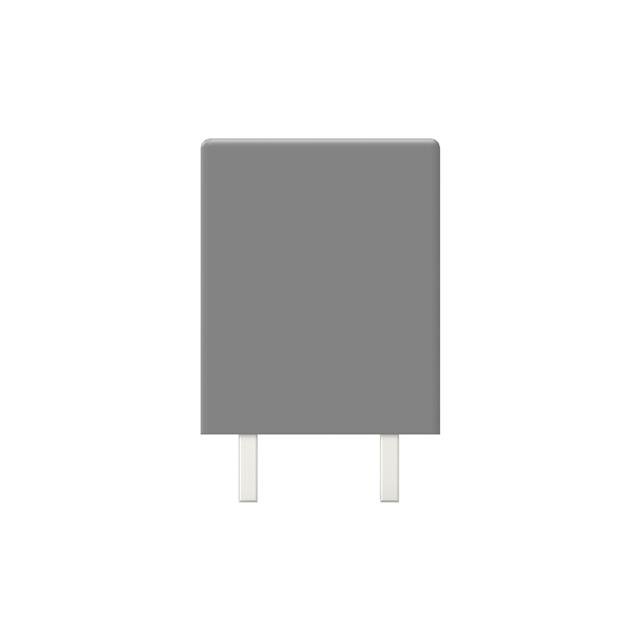

RELAY GEN PURPOSE DPDT 8A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4-1419136-3
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 8A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4-1419136-3 |
|---|---|
| Approval Agency | cURus, CQC, VDE, CSA |
| Coil Current | 33.3 mA |
| Coil Insulation | Class F |
| Coil Resistance | 360 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 8 A |
| Load - Max Switching | 3200 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 6 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1500 | $ 4.61 | |
Description
General part information
RT4230 Series
General Purpose Relay DPDT (2 Form C) 12VDC Coil Through Hole
