GRF1-P-P-06-E-ST-TH1

Active

Samtec Inc.

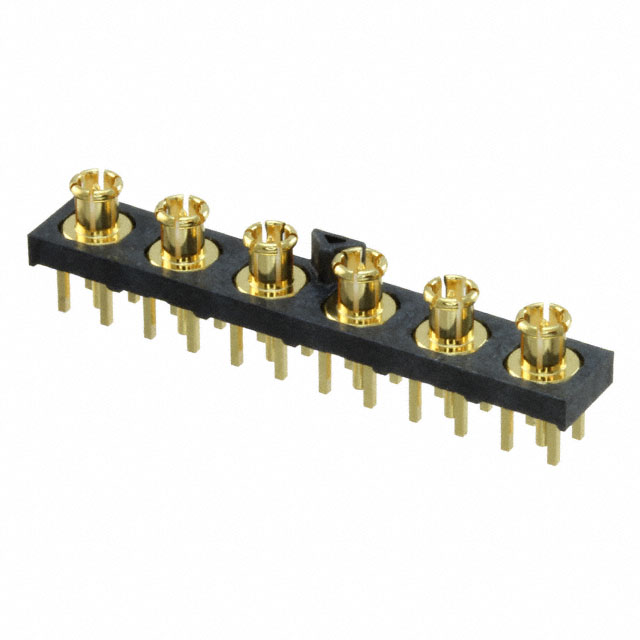

CONN MMCXV PLUG STR 50 OHM PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN MMCXV PLUG STR 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	GRF1-P-P-06-E-ST-TH1

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MMCX (V)
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	6
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Body Material	Impedance	Connector Style	Dielectric Material	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Contact Termination	Mounting Type	Housing Color	Voltage Rating	Connector Type	Fastening Type	Shield Termination	Center Contact Material	Number of Ports	Frequency - Max [Max]	1st Connector	1st Contact Gender	1st Connector Mounting Type	Length [x]	Length [x]	Style	Features	Color	Overall Impedance	Cable Impedance	Cable Type	2nd Connector
Samtec Inc. GRF1-P-P-06-E-ST-TH1	Brass	50 Ohms	MMCX (V)	Polytetrafluoroethylene (PTFE)	Gold	90 °C	-40 °C	Gold	Solder	Through Hole	Gold	500 V	Male Pin Plug	Snap-On	Solder	Brass	6	6000 MHz
Samtec Inc. GRF1-P-C-08-0100-C1-S-S						90 °C	-40 °C											5.31 GHz	MMCXV Plug	Male	Free Hanging (In-Line)	0.1 m	3.937 in	MMCXV to Cable	Panel Screws Shielded	Amber	50 Ohms	50 Ohms	RG-316	Cable (Round)
Samtec Inc. GRF1-P-C-04-0300-C1-S-S						90 °C	-40 °C											5.31 GHz	MMCXV Plug	Male	Free Hanging (In-Line)	300 mm	11.811 in	MMCXV to Cable	Panel Screws Shielded	Amber	50 Ohms	50 Ohms	RG-316	Cable (Round)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MMCX (V) Connector Plug, Male Pin 50 Ohms Through Hole Solder
