1-87579-2

Active

TE Connectivity AMP Connectors

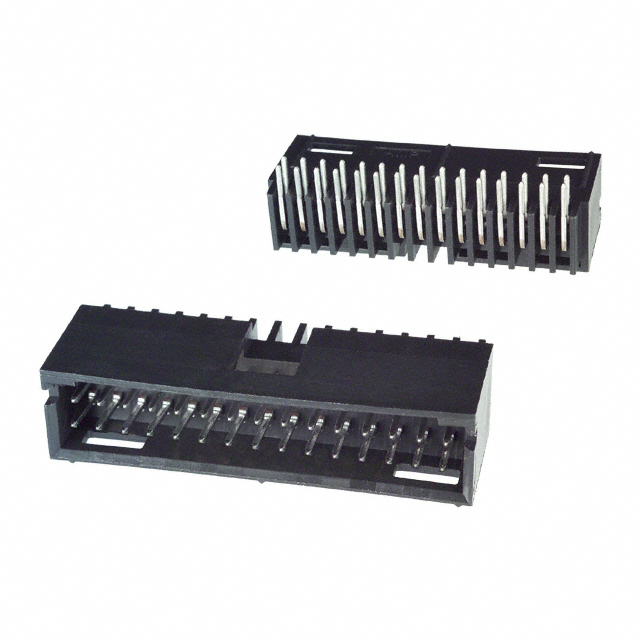

CONN HEADER R/A 30POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-87579-2

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 30POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-87579-2	87579 Series

Connector Type	Header	Header
Contact Finish - Mating	Tin-Lead	Tin-Lead
Contact Finish - Post	Tin-Lead	Tin, Tin-Lead
Contact Finish Thickness - Mating	2.54 çm	2.54 çm
Contact Finish Thickness - Mating	100 çin	100 çin
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post [x]	0.135 in	0.135 in
Contact Length - Post [x]	3.43 mm	3.43 mm
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Detent Lock	Detent Lock
Insulation Color	Black	Black
Insulation Height	0.4 in	0.4 in
Insulation Height	10.16 mm	10.16 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	30	6 - 50
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

87579 Series

CONN HEADER R/A 20POS 2.54MM

Part	Current Rating (Amps)	Termination	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Connector Type	Shrouding	Fastening Type	Contact Finish - Post	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Insulation Material	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Number of Positions Loaded	Contact Material	Contact Finish - Mating
TE Connectivity AMP Connectors 5-87579-7	3 A	Solder	UL94 V-0	2.54 µm	100 µin	0.318 "	8.08 mm	Board to Board, Cable	Through Hole, Right Angle	-65 ░C	105 ░C	0.1 in	2.54 mm	Header	Shrouded - 4 Wall	Detent Lock	Tin	Square	0.135 in	3.43 mm	Male Pin	2	2.54 çm	100 çin	0.4 in	10.16 mm	Thermoplastic	Black	2.54 mm	0.1 in	20	All	Phosphor Bronze
TE Connectivity AMP Connectors 5-87579-6	3 A	Solder	UL94 V-0	2.54 µm	100 µin	0.318 "	8.08 mm	Board to Board, Cable	Through Hole, Right Angle	-65 ░C	105 ░C	0.1 in	2.54 mm	Header	Shrouded - 4 Wall	Detent Lock	Tin	Square	0.135 in	3.43 mm	Male Pin	2	2.54 çm	100 çin	0.4 in	10.16 mm	Thermoplastic	Black	2.54 mm	0.1 in	18	All	Phosphor Bronze
TE Connectivity AMP Connectors 7-87579-2	3 A	Solder	UL94 V-0	2.54 µm	100 µin	0.318 "	8.08 mm	Board to Board, Cable	Through Hole, Right Angle	-65 ░C	105 ░C	0.1 in	2.54 mm	Header	Shrouded - 4 Wall	Detent Lock	Tin	Square	0.135 in	3.43 mm	Male Pin	2	2.54 çm	100 çin	0.4 in	10.16 mm	Thermoplastic	Black	2.54 mm	0.1 in	50	All	Phosphor Bronze
TE Connectivity AMP Connectors 1-87579-2	3 A	Solder	UL94 V-0	2.54 µm	100 µin	0.318 "	8.08 mm	Board to Board, Cable	Through Hole, Right Angle	-65 ░C	105 ░C	0.1 in	2.54 mm	Header	Shrouded - 4 Wall	Detent Lock	Tin-Lead	Square	0.135 in	3.43 mm	Male Pin	2	2.54 çm	100 çin	0.4 in	10.16 mm	Thermoplastic	Black	2.54 mm	0.1 in	30	All	Phosphor Bronze	Tin-Lead
TE Connectivity AMP Connectors 87579-7	3 A	Solder	UL94 V-0	2.54 µm	100 µin	0.318 "	8.08 mm	Board to Board, Cable	Through Hole, Right Angle	-65 ░C	105 ░C	0.1 in	2.54 mm	Header	Shrouded - 4 Wall	Detent Lock	Tin-Lead	Square	0.135 in	3.43 mm	Male Pin	2	2.54 çm	100 çin	0.4 in	10.16 mm	Thermoplastic	Black	2.54 mm	0.1 in	20	All	Phosphor Bronze	Tin-Lead
TE Connectivity AMP Connectors 8-87579-5	3 A	Solder	UL94 V-0	2.54 µm	100 µin	0.318 "	8.08 mm	Board to Board, Cable	Through Hole, Right Angle	-65 ░C	105 ░C	0.1 in	2.54 mm	Header	Shrouded - 4 Wall	Detent Lock	Tin	Square	0.135 in	3.43 mm	Male Pin	2	2.54 çm	100 çin	0.4 in	10.16 mm	Thermoplastic	Black	2.54 mm	0.1 in	6	All	Phosphor Bronze
TE Connectivity AMP Connectors 2-87579-2	3 A	Solder	UL94 V-0	2.54 µm	100 µin	0.318 "	8.08 mm	Board to Board, Cable	Through Hole, Right Angle	-65 ░C	105 ░C	0.1 in	2.54 mm	Header	Shrouded - 4 Wall	Detent Lock	Tin-Lead	Square	0.135 in	3.43 mm	Male Pin	2	2.54 çm	100 çin	0.4 in	10.16 mm	Thermoplastic	Black	2.54 mm	0.1 in	50	All	Phosphor Bronze	Tin-Lead
TE Connectivity AMP Connectors 87579-2	3 A	Solder	UL94 V-0	2.54 µm	100 µin	0.318 "	8.08 mm	Board to Board, Cable	Through Hole, Right Angle	-65 ░C	105 ░C	0.1 in	2.54 mm	Header	Shrouded - 4 Wall	Detent Lock	Tin-Lead	Square	0.135 in	3.43 mm	Male Pin	2	2.54 çm	100 çin	0.4 in	10.16 mm	Thermoplastic	Black	2.54 mm	0.1 in	10	All	Phosphor Bronze	Tin-Lead
TE Connectivity AMP Connectors 5-87579-4	3 A	Solder	UL94 V-0	2.54 µm	100 µin	0.318 "	8.08 mm	Board to Board, Cable	Through Hole, Right Angle	-65 ░C	105 ░C	0.1 in	2.54 mm	Header	Shrouded - 4 Wall	Detent Lock	Tin	Square	0.135 in	3.43 mm	Male Pin	2	2.54 çm	100 çin	0.4 in	10.16 mm	Thermoplastic	Black	2.54 mm	0.1 in	14	All	Phosphor Bronze
TE Connectivity AMP Connectors 5-87579-2	3 A	Solder	UL94 V-0	2.54 µm	100 µin	0.318 "	8.08 mm	Board to Board, Cable	Through Hole, Right Angle	-65 ░C	105 ░C	0.1 in	2.54 mm	Header	Shrouded - 4 Wall	Detent Lock	Tin	Square	0.135 in	3.43 mm	Male Pin	2	2.54 çm	100 çin	0.4 in	10.16 mm	Thermoplastic	Black	2.54 mm	0.1 in	10	All	Phosphor Bronze

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

87579 Series

Connector Header Through Hole, Right Angle 30 position 0.100" (2.54mm)
