Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RASH722BKZ | BKZ Series |
|---|---|---|
| Actual Diameter | 6.3 mm, 2 mm | 2 - 6.3 mm |
| Actual Diameter | - | 2.5 mm |
| Actual Diameter | - | 0.098 " |
| Actual Diameter | - | 0.217 " |
| Actual Diameter | - | 5.5 mm |
| Actual Diameter | - | 2 - 6.3 mm |
| Actual Diameter [diameter] | 0.079 in, 0.248 in | 0.079 - 0.248 in |
| Body Color | Black | Black, Silver |
| Body Material | Copper Alloy | Copper Alloy, Brass |
| Connector Type | Jack | Jack, Plug |
| Contact Material | Copper Alloy | Copper Alloy, Brass |
| Contact Material - Plating | - | Tin |
| Contact Material - Plating [custom] | Silver | Silver |
| Current Rating (Amps) | 5 A | 2 - 5 A |
| Gender | Male | Male, Female |
| Housing Material | Thermoplastic | Thermoplastic |
| Includes | - | 1 Connector, 1 Insulator Tube, 1 Handle |
| Industry Recognized Mating Diameter [diameter] | 0.079 in, 0.217 " | 0.079 - 0.217 in |
| Industry Recognized Mating Diameter [diameter] | 2 mm, 5.5 mm | 2 - 5.5 mm |
| Insulation Color | Black | Black |
| Internal Switch(s) | Single Switch, Normally Closed | Single Switch, Normally Closed |
| Internal Switch(s) | - | False |
| Mating Length/Depth | - | 0.374 in |
| Mating Length/Depth | - | 9.5 mm |
| Mounting Type | Through Hole, Surface Mount, Right Angle | Through Hole, Right Angle, Free Hanging (In-Line), Through Hole, Surface Mount, Right Angle |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors | 2 - 3 Conductors |
| Number of Positions/Contacts | - | 2 |
| Number of Positions/Contacts | - | 2 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder Eyelet(s), Solder |
| Voltage - Rated | 24 VDC | 24 VDC |
BKZ Series

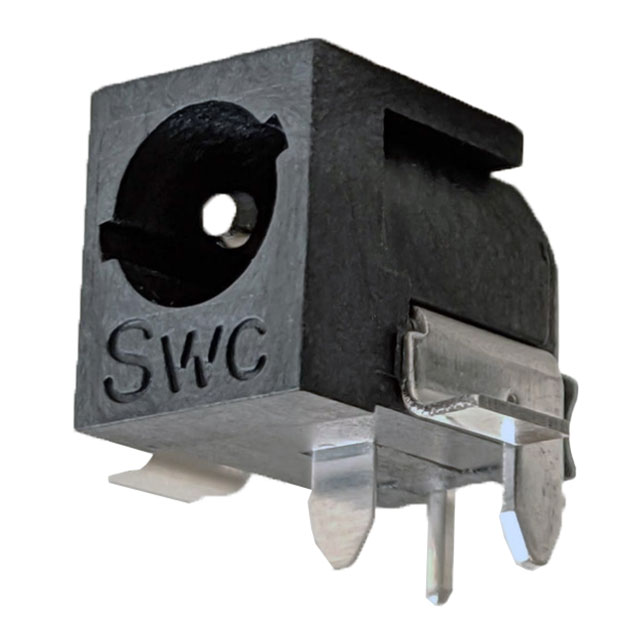

DC Power Connectors BKZ Locking Series 2.0mm Surface Mount
| Part | Actual Diameter [diameter] | Actual Diameter | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material - Plating [custom] | Gender | Body Material | Contact Material | Number of Positions/Contacts | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Body Color | Current Rating (Amps) | Connector Type | Insulation Color | Voltage - Rated | Internal Switch(s) | Housing Material | Termination | Mounting Type | Internal Switch(s) | Mating Length/Depth | Mating Length/Depth | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Contact Material - Plating | Includes | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Actual Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. RAPC722BKZ | 0.079 in, 0.248 in | 2 mm, 6.3 mm | Unshielded | 65 °C | -30 ░C | Silver | Male | Copper Alloy | Copper Alloy | 2 Conductors, 3 Conductors | 0.079 in, 0.217 " | 2 mm, 5.5 mm | Black | 5 A | Jack | Black | 24 VDC | Normally Closed, Single Switch | Thermoplastic | Solder Eyelet(s) | Through Hole, Right Angle | ||||||||||||
Switchcraft Inc. 760BKZ | Unshielded | Female | Brass | Brass | 0.098 ", 0.217 " | 2.5 mm, 5.5 mm | Black, Silver | 5 A | Plug | Black | Thermoplastic | Solder Eyelet(s) | Free Hanging (In-Line) | 0.374 in | 9.5 mm | 2.5 mm | 0.098 " | 0.217 " | 5.5 mm | Tin | 1 Connector, 1 Handle, 1 Insulator Tube | 2 | 2 | ||||||||||
Switchcraft Inc. RASH722BKZ | 0.079 in, 0.248 in | 2 mm, 6.3 mm | Unshielded | 65 °C | -30 ░C | Silver | Male | Copper Alloy | Copper Alloy | 2 Conductors, 3 Conductors | 0.079 in, 0.217 " | 2 mm, 5.5 mm | Black | 5 A | Jack | Black | 24 VDC | Normally Closed, Single Switch | Thermoplastic | Solder | Surface Mount, Right Angle, Through Hole | ||||||||||||
Switchcraft Inc. RASH712BKZ | 0.098 in, 0.248 in | Unshielded | 65 °C | -30 ░C | Silver | Male | Copper Alloy | Copper Alloy | 2 Conductors, 3 Conductors | 0.098 ", 0.217 " | 2.5 mm, 5.5 mm | Black | 5 A | Jack | Black | 24 VDC | Normally Closed, Single Switch | Thermoplastic | Solder | Surface Mount, Right Angle, Through Hole | 2.5 mm, 6.3 mm | ||||||||||||
Switchcraft Inc. RASM722BKZ | 0.079 in, 0.248 in | 2 mm, 6.3 mm | Unshielded | 65 °C | -30 ░C | Silver | Male | Copper Alloy | Copper Alloy | 2 Conductors, 3 Conductors | 0.079 in, 0.217 " | 2 mm, 5.5 mm | Black | 5 A | Jack | Black | 24 VDC | Normally Closed, Single Switch | Thermoplastic | Solder | Surface Mount, Right Angle | ||||||||||||
Switchcraft Inc. S760BKZ | 0.079 in, 0.217 in | Unshielded | Female | Brass | Brass | 0.079 in, 0.217 " | 2 mm, 5.5 mm | Black, Silver | 2 A | Plug | Black | Thermoplastic | Solder Eyelet(s) | Free Hanging (In-Line) | 0.374 in | 9.5 mm | Tin | 1 Connector, 1 Handle, 1 Insulator Tube | 2 | 2 | 2 mm, 5.5 mm | ||||||||||||
Switchcraft Inc. RAPC712BKZ | 0.098 in, 0.248 in | Unshielded | 65 °C | -30 ░C | Silver | Male | Copper Alloy | Copper Alloy | 2 Conductors, 3 Conductors | 0.098 ", 0.217 " | 2.5 mm, 5.5 mm | Black | 5 A | Jack | Black | 24 VDC | Normally Closed, Single Switch | Thermoplastic | Solder Eyelet(s) | Through Hole, Right Angle | 2.5 mm, 6.3 mm | ||||||||||||
Switchcraft Inc. RASM712BKZ | 0.098 in, 0.248 in | Unshielded | 65 °C | -30 ░C | Silver | Male | Copper Alloy | Copper Alloy | 2 Conductors, 3 Conductors | 0.098 ", 0.217 " | 2.5 mm, 5.5 mm | Black | 5 A | Jack | Black | 24 VDC | Normally Closed, Single Switch | Thermoplastic | Solder | Surface Mount, Right Angle | 2.5 mm, 6.3 mm |
