Technical Specifications
Parameters and characteristics for this part
| Specification | H4PXS-1036G |
|---|---|
| Cable Termination | IDC |
| Connector Type | DIP to Cable |
| Contact Finish | Tin |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
| Usage | Socket (0.3"), Board In |
H4PXS-10 Series
| Part | Number of Rows | Usage | Connector Type | Contact Finish | Pitch - Cable | Pitch - Cable | Pitch - Connector | Pitch - Connector | Shielding | Length [x] | Length [x] | Number of Positions | Cable Termination | Color | Length | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Assmann WSW Components | 2 | Board In Socket (0.3") | DIP to Cable | Tin | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Unshielded | 3 ft | 914.4 mm | 10 | IDC | ||||
Assmann WSW Components | 2 | Board In Socket (0.3") | DIP to Cable | Tin | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Unshielded | 1.5 ft | 457.2 mm | 10 | IDC | Multiple Ribbon | |||
Assmann WSW Components | 2 | Board In Socket (0.3") | DIP to Cable | Tin | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Unshielded | 10 | IDC | 152.4 mm | 6 " | 0.5 ' | |||
Assmann WSW Components | 2 | Board In Socket (0.3") | DIP to Cable | Tin | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Unshielded | 10 | IDC | Multiple Ribbon | 152.4 mm | 6 " | 0.5 ' |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.01 | |
| 10 | $ 1.75 | |||
| 25 | $ 1.68 | |||
| 50 | $ 1.64 | |||
| 100 | $ 1.56 | |||
| 250 | $ 1.41 | |||
| 500 | $ 1.30 | |||
| 1000 | $ 1.12 | |||
| 2500 | $ 1.04 | |||
Description
General part information
H4PXS-10 Series

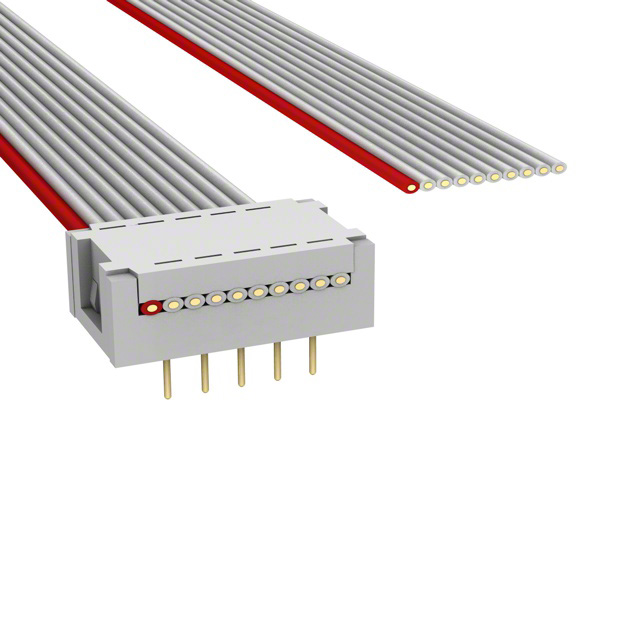

10 Position Cable Assembly Rectangular DIP to Cable 3.00' (914.40mm)
