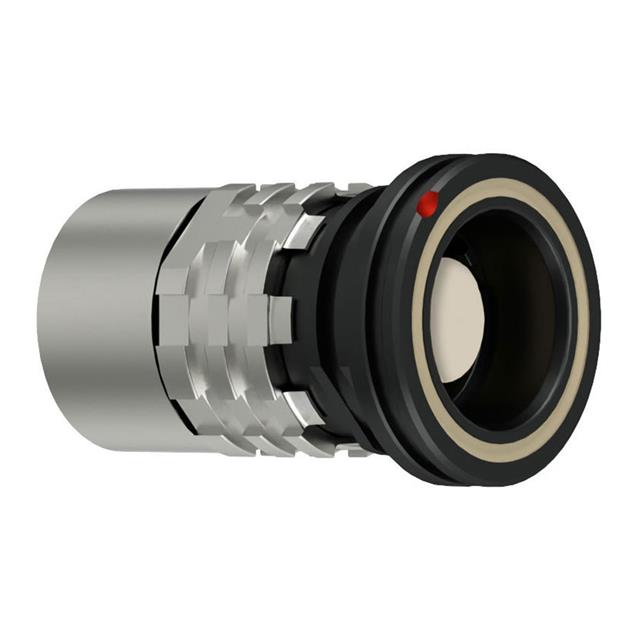

K1CWAC-P07LBC0-0000

Active

ODU

CONN RCPT FMALE 7POS SOLDER CUP

Search across all available documentation for this part.

Active

ODU

CONN RCPT FMALE 7POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	K1CWAC-P07LBC0-0000

Applications	Medical, Industrial, Military
Cable Opening [custom]	5 mm
Cable Opening [custom]	0.197 in
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Fastening Type	Detent Lock, Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-51 °C
Orientation	A
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	00
Shielding	Shielded
Voltage Rating	250 VDC

Part	Shell Size - Insert	Features	Orientation	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Contact Finish - Mating	Connector Type	Primary Material	Fastening Type	Applications	Color	Mounting Type	Shell Finish	Cable Opening [custom]	Cable Opening [custom]	Ingress Protection	Voltage Rating	Shell Material
ODU K1CWAC-P07LBC0-0000	00	Backshell	A	7	-51 °C	125 °C	Shielded	Gold	Receptacle Female Sockets	Metal	Detent Lock Push-Pull	Industrial Medical Military	Silver	Free Hanging (In-Line)	Chrome	5 mm	0.197 in	IP68 - Dust Tight Waterproof	250 VDC	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 74.49

General part information

7 Position Circular Connector Receptacle, Female Sockets Solder Cup
