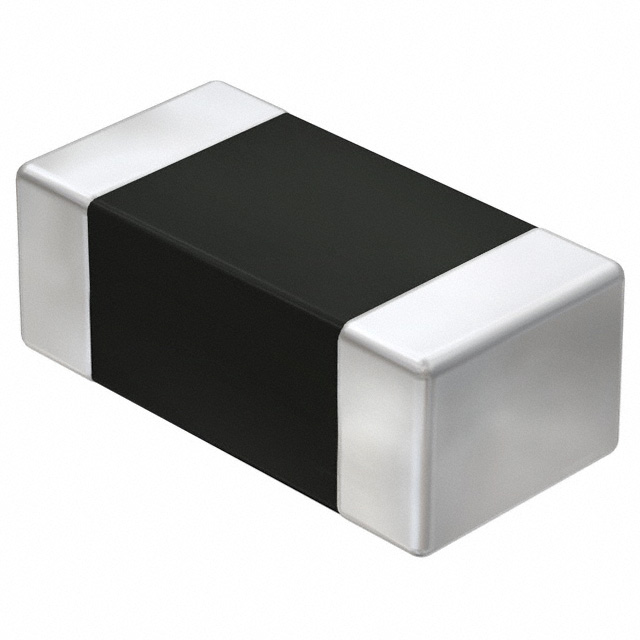

UMK325BJ105KH-T

TAIYO YUDEN

CAP CER 1UF 50V X5R 1210

Deep-Dive with AI

Search across all available documentation for this part.

UMK325BJ105KH-T

TAIYO YUDEN

CAP CER 1UF 50V X5R 1210

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.09

Description

General part information

UMK325B Series

1 µF ±10% 50V Ceramic Capacitor X5R 1210 (3225 Metric)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UMK325BJ105KH-T	UMK325B Series

Applications	SMPS Filtering	Automotive, SMPS Filtering
Capacitance	1 µF	1 - 10 µF
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC
Operating Temperature [Max]	85 °C	85 - 125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1210	1210
Package / Case	3225 Metric	3225 Metric
Ratings	-	AEC-Q200
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [x]	0.126 in	0.126 in
Size / Dimension [y]	2.5 mm	2.5 mm
Size / Dimension [y]	0.098 in	0.098 in
Temperature Coefficient	X5R	X5R, X7R
Thickness (Max) [Max]	0.106 "	0.037 - 0.11 in
Thickness (Max) [Max]	2.7 mm	0.95 - 2.8 mm
Tolerance	10 %	10 - 20 %
Voltage - Rated	50 VDC	50 VDC

UMK325B Series

CAP ,MLCC ,1210,50V ,X5R,4.7UF10% ROHS COMPLIANT: YES

Part	Ratings	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Applications	Thickness (Max) [Max]	Thickness (Max) [Max]	Mounting Type	Tolerance	Capacitance	Package / Case	Package / Case
TAIYO YUDEN UMK325BJ475KNHT	AEC-Q200	X5R	3.2 mm	2.5 mm	0.126 in	0.098 in	85 °C	-55 °C	50 VDC	Automotive	0.083 in	2.1 mm	MLCC, Surface Mount	10 %	4.7 µF	1210	3225 Metric
TAIYO YUDEN UMK325B7335KM-P		X7R	3.2 mm	2.5 mm	0.126 in	0.098 in	125 °C	-55 °C	50 VDC	SMPS Filtering	0.106 "	2.7 mm	MLCC, Surface Mount	10 %	3.3 µF	1210	3225 Metric
TAIYO YUDEN UMK325BJ105KH-T		X5R	3.2 mm	2.5 mm	0.126 in	0.098 in	85 °C	-55 °C	50 VDC	SMPS Filtering	0.106 "	2.7 mm	MLCC, Surface Mount	10 %	1 µF	1210	3225 Metric
TAIYO YUDEN UMK325B7475MN-TR		X7R	3.2 mm	2.5 mm	0.126 in	0.098 in	125 °C	-55 °C	50 VDC	SMPS Filtering	0.037 in	0.95 mm	MLCC, Surface Mount	20 %	4.7 µF	1210	3225 Metric
TAIYO YUDEN UMK325B7475MM-P		X7R	3.2 mm	2.5 mm	0.126 in	0.098 in	125 °C	-55 °C	50 VDC	SMPS Filtering	0.106 "	2.7 mm	MLCC, Surface Mount	20 %	4.7 µF	1210	3225 Metric
TAIYO YUDEN UMK325BJ106MM-T		X5R	3.2 mm	2.5 mm	0.126 in	0.098 in	85 °C	-55 °C	50 VDC	SMPS Filtering	0.106 "	2.7 mm	MLCC, Surface Mount	20 %	10 µF	1210	3225 Metric
TAIYO YUDEN UMK325BJ106MM-P		X5R	3.2 mm	2.5 mm	0.126 in	0.098 in	85 °C	-55 °C	50 VDC	SMPS Filtering	0.11 in	2.8 mm	MLCC, Surface Mount	20 %	10 µF	1210	3225 Metric
TAIYO YUDEN UMK325BJ106MMHP	AEC-Q200	X5R	3.2 mm	2.5 mm	0.126 in	0.098 in	85 °C	-55 °C	50 VDC	Automotive, SMPS Filtering	0.106 "	2.7 mm	MLCC, Surface Mount	20 %	10 µF	1210	3225 Metric
TAIYO YUDEN UMK325B7335MM-P		X7R	3.2 mm	2.5 mm	0.126 in	0.098 in	125 °C	-55 °C	50 VDC	SMPS Filtering	0.106 "	2.7 mm	MLCC, Surface Mount	20 %	3.3 µF	1210	3225 Metric
TAIYO YUDEN UMK325B7475KM-P		X7R	3.2 mm	2.5 mm	0.126 in	0.098 in	125 °C	-55 °C	50 VDC	SMPS Filtering	0.106 "	2.7 mm	MLCC, Surface Mount	10 %	4.7 µF	1210	3225 Metric
