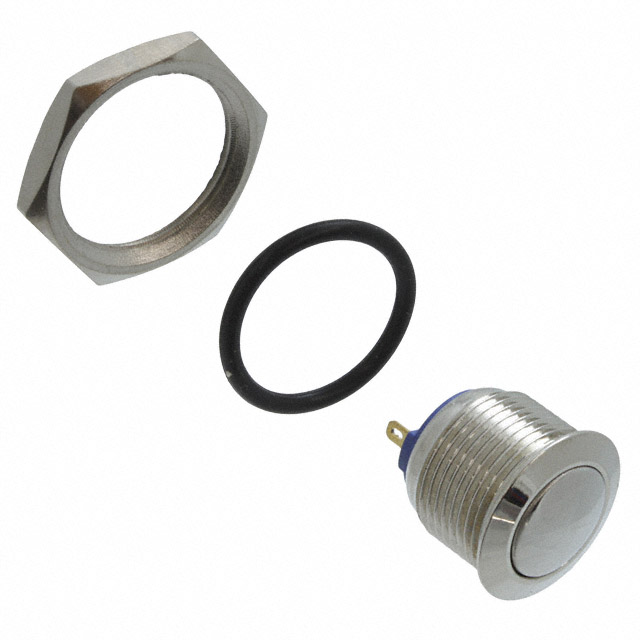

PV2S240NN

Active

E-Switch

SWITCH PUSHBUTTON SPST-NO 2A 48V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSHBUTTON SPST-NO 2A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	PV2S240NN

Actuator Marking	No Marking
Actuator Type	Domed, Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	200000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Anti-Vandal
Voltage Rating - DC	48 V

Part	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Marking	Actuator Type	Switch Function	Panel Cutout Dimensions [diameter]	Termination Style	Color - Actuator/Cap	Mechanical Life	Current Rating (Amps)	Ingress Protection	Electrical Life	Voltage Rating - DC	Type
E-Switch PV2S240NN	SPST-NO	55 °C	-20 C	Panel Mount Front	No Marking	Button Domed Round	Off-Mom	16 mm	Solder Lug	Silver	1000000 Cycles	2 A	IP65 - Dust Tight Water Resistant	200000 Cycles	48 V	Anti-Vandal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Anti-Vandal Panel Mount, Front
