K30F1C-P07LCC0-4000

Active

ODU

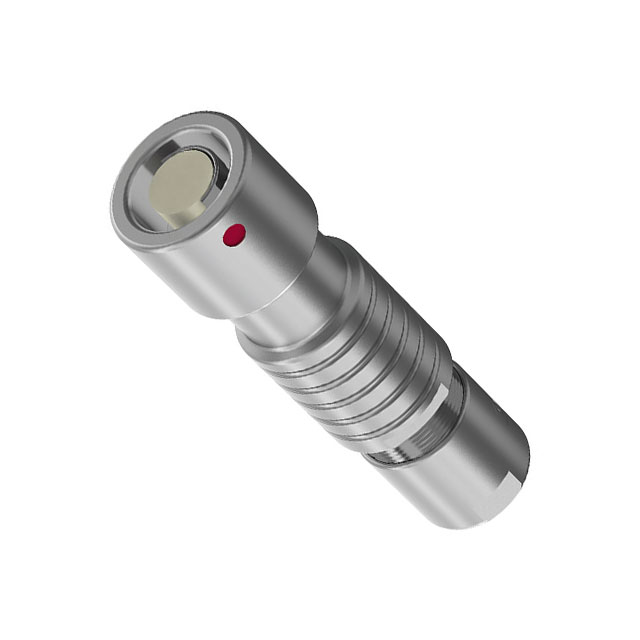

CONN RCPT FMALE 7P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ODU MINI-SNAP Series F Catalog +1

K30F1C-P07LCC0-4000

Active

ODU

CONN RCPT FMALE 7P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet ODU MINI-SNAP Series F Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	K30F1C-P07LCC0-4000

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel
Cable Opening [Max] [diameter]	0.157 in
Cable Opening [Max] [diameter]	4 mm
Cable Opening [Min] [diameter]	0.138 in
Cable Opening [Min] [diameter]	3.5 mm
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	1
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	0

K30F1C-P Series

Part	Features	Color	Fastening Type	Material Flammability Rating	Shielding	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Primary Material	Connector Type	Number of Positions	Backshell Material, Plating	Contact Finish - Mating	Ingress Protection	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Shell Material	Insert Material	Mounting Type	Current Rating (Amps)	Contact Material	Applications	Orientation	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]
ODU K30F1C-P02LJG0-5000	Backshell	Silver	Push-Pull	UL94 V-0	Unshielded	0.197 in	0.177 in	5 mm	4.5 mm	Metal	Receptacle Female Sockets	2	Brass Chrome over Nickel	Gold	IP68 - Dust Tight Waterproof	Chrome over Nickel	-40 °C	120 °C	500 V	Brass	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	7.5 A	Brass	Industrial Medical Military Testing Equipment & Measurement	1
ODU K30F1C-P03LJG0-4500	Backshell	Silver	Push-Pull	UL94 V-0						Metal	Receptacle Female Sockets		Brass Chrome over Nickel	Gold	IP68 - Dust Tight Waterproof	Chrome over Nickel	-40 °C	120 °C		Brass	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	7.5 A	Brass	Industrial Medical Military Testing Equipment & Measurement	1	4.5 mm	0.157 in	0.177 in	4 mm
ODU K30F1C-P03LJG0-2500	Backshell	Silver	Push-Pull	UL94 V-0	Unshielded					Metal	Receptacle Female Sockets		Brass Chrome over Nickel	Gold	IP68 - Dust Tight Waterproof	Chrome over Nickel	-40 °C	120 °C	400 V	Brass	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	7.5 A	Brass	Industrial Medical Military Testing Equipment & Measurement	1		0.079 in	0.098 in	2 mm	2.5 mm
ODU K30F1C-P03LJG0-1500	Backshell	Silver	Push-Pull	UL94 V-0	Unshielded					Metal	Receptacle Female Sockets		Brass Chrome over Nickel	Gold	IP68 - Dust Tight Waterproof	Chrome over Nickel	-40 °C	120 °C	400 V	Brass	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	7.5 A	Brass	Industrial Medical Military Testing Equipment & Measurement	1						0.039 in 0.059 in	1 mm 1.5 mm
ODU K30F1C-P07LCC0-4000	Backshell	Silver	Push-Pull	UL94 V-0		0.157 in	0.138 in		3.5 mm	Metal	Receptacle Female Sockets	7	Brass Chrome over Nickel	Gold	IP68 - Dust Tight Waterproof	Chrome over Nickel	-40 °C	120 °C		Brass	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	4 A	Brass	Industrial Medical Military Testing Equipment & Measurement	1								4 mm
ODU K30F1C-P05LFG0-2500	Backshell	Silver	Push-Pull	UL94 V-0	Unshielded					Metal	Receptacle Female Sockets		Brass Chrome over Nickel	Gold	IP68 - Dust Tight Waterproof	Chrome over Nickel	-40 °C	120 °C	200 V	Brass	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	7.5 A	Brass	Industrial Medical Military Testing Equipment & Measurement	1		0.079 in	0.098 in	2 mm	2.5 mm
ODU K30F1C-P04LFG0-2000	Backshell	Silver	Push-Pull	UL94 V-0	Unshielded					Metal	Receptacle Female Sockets	4	Brass Chrome over Nickel	Gold	IP68 - Dust Tight Waterproof	Chrome over Nickel	-40 °C	120 °C	300 VDC	Brass	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	7.5 A	Brass	Industrial Medical Military Testing Equipment & Measurement	1	2 mm	0.059 in	0.079 in	1.5 mm
ODU K30F1C-P02LJG0-3000	Backshell	Silver	Push-Pull	UL94 V-0	Unshielded	0.118 in	0.098 in	3 mm	2.5 mm	Metal	Receptacle Female Sockets	2	Brass Chrome over Nickel	Gold	IP68 - Dust Tight Waterproof	Chrome over Nickel	-40 °C	120 °C	500 V	Brass	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	7.5 A	Brass	Industrial Medical Military Testing Equipment & Measurement	1
ODU K30F1C-P04LFG0-1500	Backshell	Silver	Push-Pull	UL94 V-0	Unshielded					Metal	Receptacle Female Sockets	4	Brass Chrome over Nickel	Gold	IP68 - Dust Tight Waterproof	Chrome over Nickel	-40 °C	120 °C	300 VDC	Brass	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	7.5 A	Brass	Industrial Medical Military Testing Equipment & Measurement	1						0.039 in 0.059 in	1 mm 1.5 mm
ODU K30F1C-P04LFG0-4500	Backshell	Silver	Push-Pull	UL94 V-0	Unshielded					Metal	Receptacle Female Sockets	4	Brass Chrome over Nickel	Gold	IP68 - Dust Tight Waterproof	Chrome over Nickel	-40 °C	120 °C	300 VDC	Brass	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	7.5 A	Brass	Industrial Medical Military Testing Equipment & Measurement	1	4.5 mm	0.157 in	0.177 in	4 mm
