XNC2LUR147D

Active

SunLED

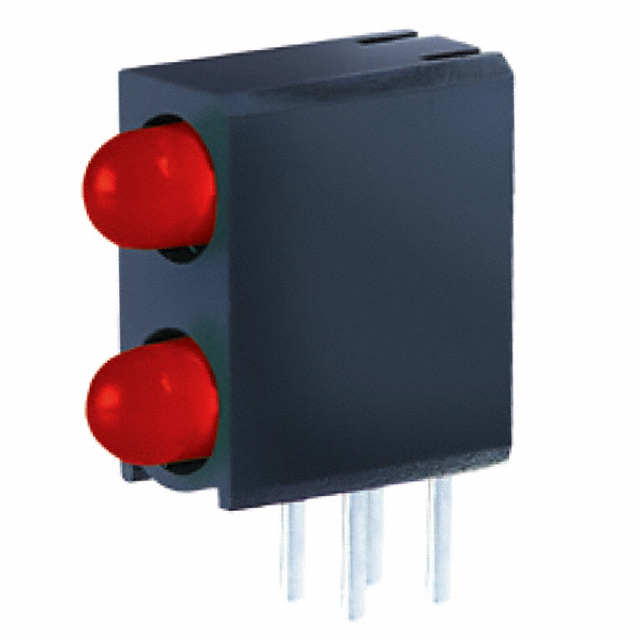

LED CBI 3MM BI-LVL RED DIFF RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XNC2LUR147D

Active

SunLED

LED CBI 3MM BI-LVL RED DIFF RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XNC2LUR147D

Color	Red
Configuration	2 High
Current	160 mA
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	11 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle [custom]	40 °
Voltage Rating	1.9 V
Wavelength - Peak	627 nm

XNC2LUR147 Series

Part	Viewing Angle [custom]	Wavelength - Peak	Millicandela Rating	Lens Style	Current	Mounting Type	Configuration	Color	Lens Type	Voltage Rating	Lens Size	Lens Size
SunLED XNC2LUR147D	40 °	627 nm	11 mcd	Round with Domed Top	160 mA	Through Hole Right Angle	2 High	Red	Diffused Tinted	1.9 V	3 mm	T-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1000	$ 0.43

Description

General part information

XNC2LUR147 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Red (x 2) Diffused, Tinted 1.9V 160mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle

Documents

Technical documentation and resources
