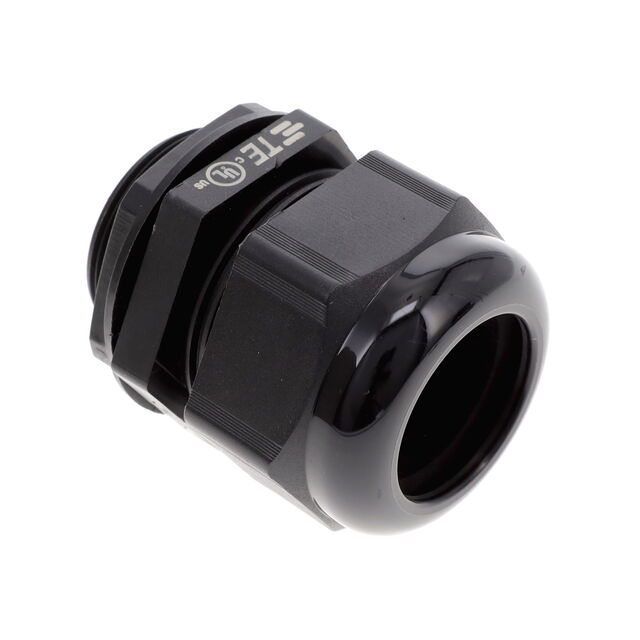

EP-SGL-M40-BL-F

Active

TE Connectivity ENTRELEC

CABLE GLAND 22-32MM M40 POLYAMID

Search across all available documentation for this part.

Active

TE Connectivity ENTRELEC

CABLE GLAND 22-32MM M40 POLYAMID

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EP-SGL-M40-BL-F	EP-SGL-M40 Series

Color	Black	Black, Gray
Includes	Seal	Seal
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max) [Max]	32 mm	32 mm
Outside Cable Diameter (Max) [Max]	1.26 in	1.26 in
Outside Cable Diameter (Min) [Min] [diameter]	22 mm	22 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.866 in	0.866 in
Thread Length	0.709 in	0.709 in
Thread Length	18.01 mm	18.01 mm
Thread Size	M40x1.5	M40x1.5
Type	Cable Gland	Cable Gland

CABLE GLAND 22-32MM M40 POLYAMID

Part	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Color	Thread Size	Thread Length	Thread Length	Ingress Protection
TE Connectivity ENTRELEC EP-SGL-M40-BL-F	32 mm	1.26 in	Cable Gland	22 mm	0.866 in	100 °C	-20 C	Seal	Black	M40x1.5	0.709 in	18.01 mm	IP68 - Dust Tight, Waterproof
TE Connectivity ENTRELEC EP-SGL-M40-GR-F	32 mm	1.26 in	Cable Gland	22 mm	0.866 in	100 °C	-20 C	Seal	Gray	M40x1.5	0.709 in	18.01 mm	IP68 - Dust Tight, Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 M40x1.5 Black
