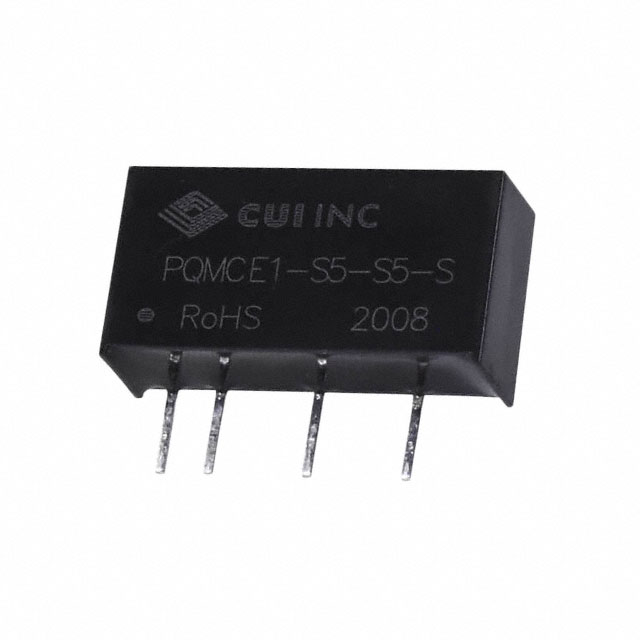

PQMCE1-S5-S3-S

CUI Inc.

DC DC CONVERTER 3.3V 825MW

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PQMCE1-S5-S3-S

Applications	ITE (Commercial)
Approval Agency	EN
Current - Output (Max) [Max]	250 mA
Efficiency	67 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-SIP Module, 4 Leads
Power (Watts)	825 mW
Size / Dimension [x]	0.77 in
Size / Dimension [x]	19.7 mm
Size / Dimension [y]	0.24 "
Size / Dimension [y]	6 mm
Size / Dimension [z]	10.2 mm
Size / Dimension [z]	0.4 "
Standard Number	55024, 55032
Type	Isolated Module
Voltage - Input (Max) [Max]	5.25 V
Voltage - Input (Min) [Min]	4.75 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	3.3 V

PQMCE1 Series

Part	Voltage - Input (Min) [Min]	Power (Watts)	Standard Number	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Type	Efficiency	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Isolation	Applications	Voltage - Output 1	Mounting Type	Package / Case
CUI Inc. PQMCE1-S5-S3-S	4.75 V	825 mW	55024 55032	5.25 V	250 mA	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	Isolated Module	67 %	EN	85 °C	-40 °C	1	1.5 kV	ITE (Commercial)	3.3 V	Through Hole	7-SIP Module 4 Leads
CUI Inc. PQMCE1-S5-S12-S	4.75 V		55024 55032 Class A 62368-1	5.25 V	84 mA	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	Isolated Module	72 %	CB Scheme EN IEC UL	85 °C	-40 °C	1	1.5 kV	ITE (Commercial)	12 V	Through Hole	7-SIP Module 4 Leads
CUI Inc. PQMCE1-S5-S9-S	4.75 V	0.99 W	55024 55032 Class A 62368-1	5.25 V	110 mA	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	Isolated Module	71 %	CB Scheme EN IEC UL	85 °C	-40 °C	1	1.5 kV	ITE (Commercial)	9 V	Through Hole	7-SIP Module 4 Leads
CUI Inc. PQMCE1-S5-S15-S	4.75 V		55024 55032 Class A 62368-1	5.25 V	67 mA	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	Isolated Module	73 %	CB Scheme EN IEC UL	85 °C	-40 °C	1	1.5 kV	ITE (Commercial)	15 V	Through Hole	7-SIP Module 4 Leads
CUI Inc. PQMCE1-S5-S5-S	4.75 V		55024 55032 Class A 62368-1	5.25 V	200 mA	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	Isolated Module	70 %	CB Scheme EN IEC UL	85 °C	-40 °C	1	1.5 kV	ITE (Commercial)	5 V	Through Hole	7-SIP Module 4 Leads
CUI Inc. PQMCE1-S5-S24-S	4.75 V	984 mW		5.25 V	41 mA	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	Isolated Module	73 %	CE cURus	85 °C	-40 °C	1	1.5 kV	ITE (Commercial)	24 V	Through Hole	7-SIP Module 4 Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.64
		5	$ 3.59
		10	$ 3.54
		25	$ 3.43

Description

General part information

PQMCE1 Series

Isolated Module DC DC Converter 1 Output 3.3V 250mA 4.75V - 5.25V Input
