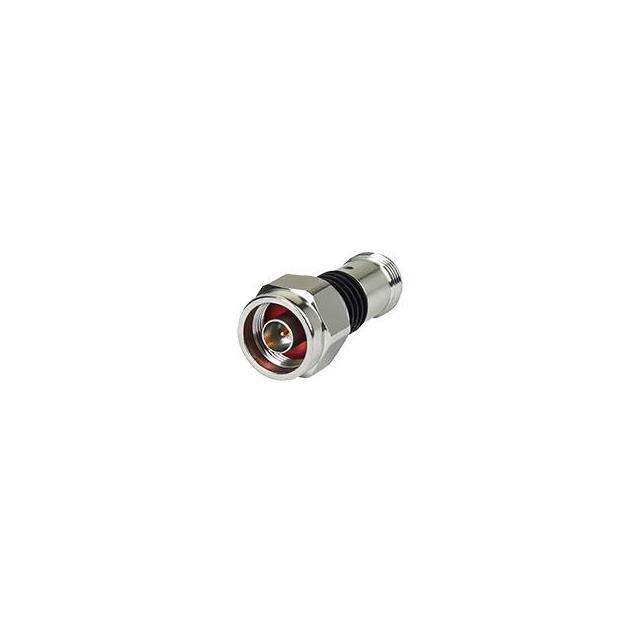

BW-N20W5+

Active

MINI-CIRCUITS

FXD ATTEN 5W N F/M 20DB ROHS

Search across all available documentation for this part.

Active

MINI-CIRCUITS

FXD ATTEN 5W N F/M 20DB ROHS

Technical Specifications

Parameters and characteristics commom to parts in this series

FXD ATTEN /N / 20DB 50W ROHS

Part	Impedance	Power (Watts)	Package / Case	Attenuation Value	Frequency Range [Max]
MINI-CIRCUITS BW-N20W50+	50 Ohms	50 W	N-Type In-Line Module	20 dB	18 GHz
MINI-CIRCUITS BW-N20W20+	50 Ohms	5 W	N-Type In-Line Module	20 dB	18 GHz
MINI-CIRCUITS BW-N20W5+	50 Ohms	5 W	N-Type In-Line Module	20 dB	18 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Attenuators 20dB 0 Hz ~ 18 GHz 50 Ohms 5W N-Type In-Line Module
