SFML-105-02-L-D-A

Active

Samtec Inc.

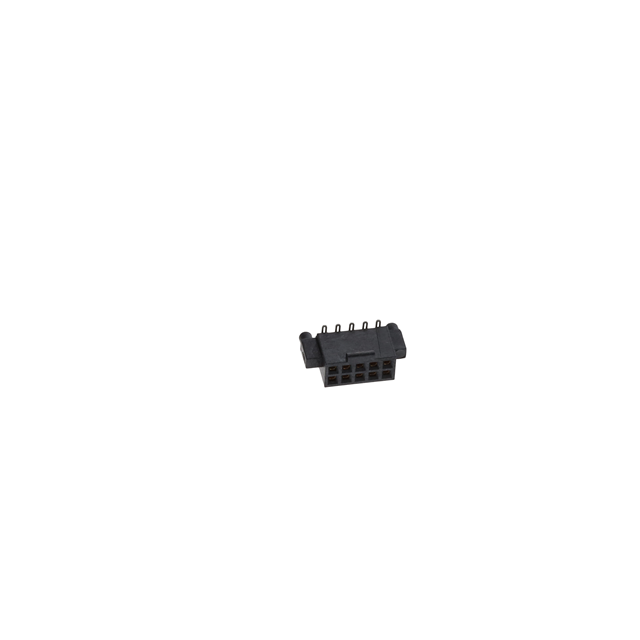

CONN RCPT 10POS 0.05 GOLD SMD

Deep-Dive with AI

DocumentsSFML-105-01-L-D Datasheet 02 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFML-105-02-L-D-A

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.2 A
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Black
Insulation Height	0.185 in
Insulation Height	4.7 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

SFML-105 Series

Part	Material Flammability Rating	Current Rating (Amps)	Contact Finish - Mating	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Finish - Post	Features	Number of Positions	Contact Shape	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Material	Insulation Height	Insulation Height	Insulation Color	Termination	Style	Contact Type	Mounting Type	Voltage Rating	Contact Length - Post [x]	Contact Length - Post	Fastening Type	Contact Length - Post [x]
Samtec Inc. SFML-105-L3-S-D-A	UL94 V-0	3.2 A	Gold	2	30 Áin	0.76 Ám	0.05 in	1.27 mm	-55 °C	125 °C	All	Tin	Board Guide	10	Square	Receptacle	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	4.57 mm	0.18 "	Black	Solder	Board to Board Cable	Female Socket	Through Hole	250 VAC	0.075 in	1.91 mm	Locking Ramp
Samtec Inc. SFML-105-03-S-D-A	UL94 V-0	3.2 A	Gold	2	30 Áin	0.76 Ám	0.05 in	1.27 mm	-55 °C	125 °C	All	Tin	Board Guide	10	Square	Receptacle	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	4.57 mm	0.18 "	Black	Solder	Board to Board Cable	Female Socket	Through Hole	250 VAC	0.075 in	1.91 mm	Locking Ramp
Samtec Inc. SFML-105-02-L-D-A	UL94 V-0	3.2 A	Gold	2	10 çin	0.25 çm	0.05 in	1.27 mm	-55 °C	125 °C	All	Tin	Board Guide	10	Square	Receptacle	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	4.7 mm	0.185 in	Black	Solder	Board to Board Cable	Female Socket	Surface Mount	250 VAC			Locking Ramp
Samtec Inc. SFML-105-L2-L-D-A	UL94 V-0	3.2 A	Gold	2	10 çin	0.25 çm	0.05 in	1.27 mm	-55 °C	125 °C	All	Tin	Board Guide	10	Square	Receptacle	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	4.7 mm	0.185 in	Black	Solder	Board to Board Cable	Female Socket	Surface Mount	250 VAC			Locking Ramp
Samtec Inc. SFML-105-02-L-D-K	UL94 V-0	3.2 A	Gold	2	10 çin	0.25 çm	0.05 in	1.27 mm	-55 °C	125 °C	All	Tin	Pick and Place	10	Square	Receptacle	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	4.7 mm	0.185 in	Black	Solder	Board to Board Cable	Female Socket	Surface Mount	250 VAC			Locking Ramp
Samtec Inc. SFML-105-T2-L-D-TR	UL94 V-0	3.2 A	Gold	2	10 çin	0.25 çm	0.05 in	1.27 mm	-55 °C	125 °C	All	Tin		10	Square	Receptacle	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	4.7 mm	0.185 in	Black	Solder	Board to Board Cable	Female Socket	Surface Mount	250 VAC			Locking Ramp
Samtec Inc. SFML-105-01-S-D	UL94 V-0	3.2 A	Gold	2	30 Áin	0.76 Ám	0.05 in	1.27 mm	-55 °C	125 °C	All	Tin		10	Square	Receptacle	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	4.57 mm	0.18 "	Black	Solder	Board to Board Cable	Female Socket	Through Hole	250 VAC	0.12 in		Locking Ramp	3.05 mm
Samtec Inc. SFML-105-T1-L-D-LC	UL94 V-0	3.2 A	Gold	2	10 çin	0.25 çm	0.05 in	1.27 mm	-55 °C	125 °C	All	Tin		10	Square	Receptacle	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	4.57 mm	0.18 "	Black	Solder	Board to Board Cable	Female Socket	Through Hole	250 VAC	0.12 in		Locking Ramp	3.05 mm
Samtec Inc. SFML-105-L2-L-D	UL94 V-0	3.2 A	Gold	2	10 çin	0.25 çm	0.05 in	1.27 mm	-55 °C	125 °C	All	Tin		10	Square	Receptacle	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	4.7 mm	0.185 in	Black	Solder	Board to Board Cable	Female Socket	Surface Mount	250 VAC			Locking Ramp
Samtec Inc. SFML-105-L2-L-D-A-K-TR	UL94 V-0	3.2 A	Gold	2	10 çin	0.25 çm	0.05 in	1.27 mm	-55 °C	125 °C	All	Tin	Board Guide Pick and Place	10	Square	Receptacle	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	4.7 mm	0.185 in	Black	Solder	Board to Board Cable	Female Socket	Surface Mount	250 VAC			Locking Ramp
