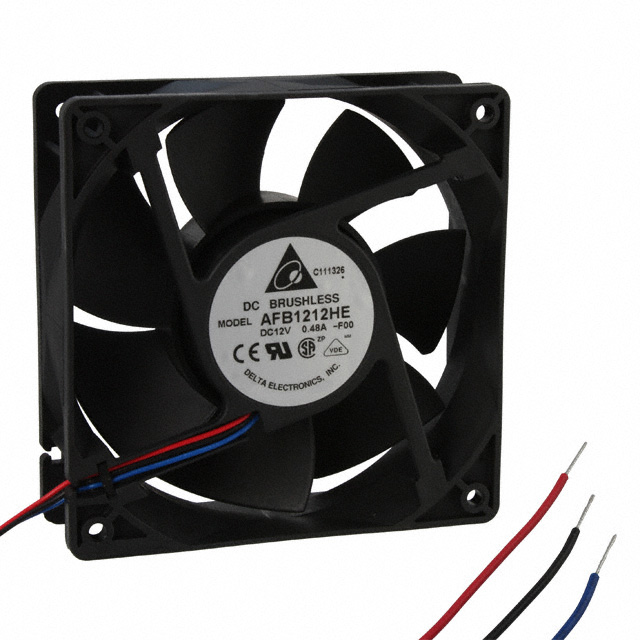

AFB1212HE-F00

Active

Delta Electronics

FAN AXIAL 120X38MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fans VDE Cert +2

AFB1212HE-F00

Active

Delta Electronics

FAN AXIAL 120X38MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet Fans VDE Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AFB1212HE-F00

Air Flow	2.97 mł/min
Air Flow	105.9 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	320 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	41 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	3.84 W
RPM	2600 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	74.7 Pa
Static Pressure	0.3 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	4 VDC
Weight	256.28 g
Weight	0.565 lb
Width [y]	38 mm

AFB1212 Series

Part	Power (Watts)	RPM	Voltage - Rated	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Air Flow	Air Flow	Weight	Weight	Material - Blade	Noise	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Material - Frame	Lifetime @ Temp.	Static Pressure	Static Pressure	Features	Fan Type	Bearing Type	Termination	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Approval Agency
Delta Electronics AFB1212HHE-F00	5.52 W	2900 RPM	12 VDC	38 mm	120 mm	120 mm	3.36 m³/min	120.1 CFM	256.28 g	0.565 lb	Plastic	44 dB	-10 °C	-10 °C	60 °C	60 °C	Plastic	70000 Hrs	0.354 in H2O	88.2 Pa	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	Ball	3 Wire Leads	13.2 VDC	4 VDC	460 mA	CE CSA UL VDE
Delta Electronics AFB1212GHE-C	29.4 W	5200 RPM	12 VDC	38 mm	120 mm	120 mm	6.75 mł/min	241 CFM	330.22 g	0.728 lb	Plastic	62 dB(A)	-10 °C	-10 °C	70 °C	70 °C	Plastic	70000 Hrs	1.082 in H2O	269.5 Pa		Tubeaxial	Ball	2 Wire Leads	12.8 VDC	6 VDC	2.45 A	CE CSA UL VDE
Delta Electronics AFB1212LE-R00	2.28 W	2000 RPM	12 VDC	38 mm	120 mm	120 mm	2.37 m³/min	84.8 CFM	256.28 g	0.565 lb	Plastic	34 dB(A)	-10 °C	-10 °C	60 °C	60 °C	Plastic	70000 Hrs	0.18 in H2O	44.8 Pa	Locked Rotor Sensor	Tubeaxial	Ball	3 Wire Leads	13.2 VDC	4 VDC	0.19 A	CE CSA UL VDE
Delta Electronics AFB1212VH-F00	4.8 W	3100 RPM	12 VDC	25.4 mm	120 mm	120 mm	2.91 mł/min	103.8 CFM	198 g	0.437 lb	Plastic	44.5 dB	-10 °C	-10 °C	60 °C	60 °C	Plastic	70000 Hrs	0.371 in H2O	92.5 Pa	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	Ball	3 Wire Leads	13.8 VDC	7 V	400 mA	CE CSA UL VDE
Delta Electronics AFB1212VHE-CF00	8.16 W	4000 RPM	12 VDC	38 mm	120 mm	120 mm	4.15 m³/min	148.3 CFM	320.24 g	0.706 lb	Plastic	51 dB(A)	-10 °C	-10 °C	70 °C	70 °C	Plastic	70000 Hrs	0.602 in H2O	149.9 Pa	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	Ball	3 Wire Leads	12.8 VDC	6 VDC	0.68 A	CE CSA UL VDE
Delta Electronics AFB1212GHE-CF00	29.4 W	5200 RPM	12 VDC	38 mm	120 mm	120 mm	6.75 mł/min	241 CFM	330.22 g	0.728 lb	Plastic	62 dB(A)	-10 °C	-10 °C	70 °C	70 °C	Plastic	70000 Hrs	1.082 in H2O	269.5 Pa	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	Ball	3 Wire Leads	12.8 VDC	6 VDC	2.45 A	CE CSA UL VDE
Delta Electronics AFB1212HE-F00	3.84 W	2600 RPM	12 VDC	38 mm	120 mm	120 mm	2.97 mł/min	105.9 CFM	256.28 g	0.565 lb	Plastic	41 dB	-10 °C	-10 °C	60 °C	60 °C	Plastic	70000 Hrs	0.3 in H2O	74.7 Pa	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	Ball	3 Wire Leads	13.2 VDC	4 VDC	320 mA	CE CSA UL VDE
Delta Electronics AFB1212EHE-CF00	21.6 W	4600 RPM	12 VDC	38 mm	120 mm	120 mm	5.95 m³/min	212.6 CFM	330.22 g	0.728 lb	Plastic	58.5 dB					Plastic		0.844 in H2O	210.2 Pa	Speed Sensor (Tach)	Tubeaxial	Ball	3 Wire Leads	13.8 VDC	6 VDC	1.8 A	CE CSA UL VDE
Delta Electronics AFB1212SH	6.36 W	3400 RPM	12 VDC	25.4 mm	120 mm	120 mm	3.17 m³/min	113.1 CFM	198 g	0.437 lb	Plastic	46.5 dB	-10 °C	-10 °C	60 °C	60 °C	Plastic	70000 Hrs	0.43 in H2O	107.1 Pa		Tubeaxial	Ball	2 Wire Leads	13.8 VDC	7 V	0.53 A	CE CSA UL VDE
Delta Electronics AFB1212SH-R00	6.36 W	3400 RPM	12 VDC	25.4 mm	120 mm	120 mm	3.17 m³/min	113.1 CFM	198 g	0.437 lb	Plastic	46.5 dB	-10 °C	-10 °C	60 °C	60 °C	Plastic	70000 Hrs	0.43 in H2O	107.1 Pa	Locked Rotor Sensor	Tubeaxial	Ball	3 Wire Leads	13.8 VDC	7 V	0.53 A	CE CSA UL VDE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.01
		10	$ 14.33
		36	$ 12.96
		72	$ 12.01

Description

General part information

AFB1212 Series

Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 105.9 CFM (2.97m³/min) 3 Wire Leads
