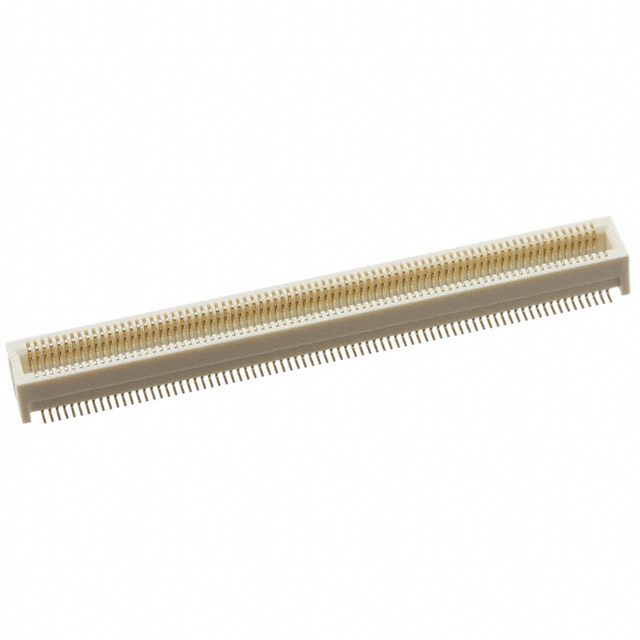

AXK5SA6277YG

Obsolete

Panasonic Electric Works

CONN SOCKET 160POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 160POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK5SA6277YG

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Board Guide
Height Above Board	3.55 mm
Height Above Board	0.14 in
Mated Stacking Heights	6.5 mm, 4.5 mm, 5.5 mm
Mounting Type	Surface Mount
Number of Positions	160
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Connector Type	Height Above Board	Height Above Board	Features	Mated Stacking Heights	Number of Positions	Contact Finish	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type
Panasonic Electric Works AXK5SA6277YG	Socket Center Strip Contacts	3.55 mm	0.14 in	Board Guide	4.5 mm 5.5 mm 6.5 mm	160	Gold	2	0.5 mm	0.02 in	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

160 Position Connector Socket, Center Strip Contacts Surface Mount Gold
