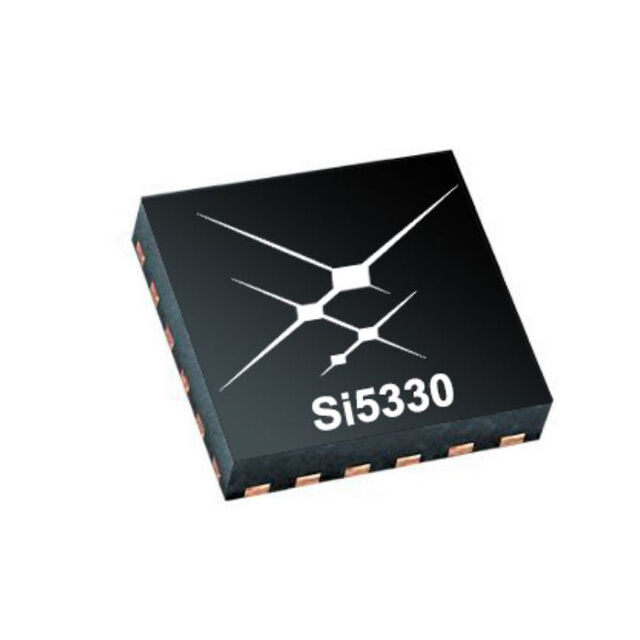

SI5330B-B00206-GM

Active

Skyworks Solutions Inc.

IC CLK BUFFER 1:4 710MHZ 24QFN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SI5330B-B00206-GM

Active

Skyworks Solutions Inc.

IC CLK BUFFER 1:4 710MHZ 24QFN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SI5330B-B00206-GM

Differential - Input:Output [custom]	True
Differential - Input:Output [custom]	True
Frequency - Max [Max]	710 MHz
Input	CML, LVDS, HCSL, LVPECL
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVDS
Package / Case	24-VFQFN Exposed Pad
Ratio - Input:Output	1:4
Supplier Device Package	24-QFN (4x4)
Type	Fanout Buffer (Distribution), Translator
Voltage - Supply [Max]	3.63 V
Voltage - Supply [Min]	1.71 V

SI5330 Series

Part	Ratio - Input:Output	Frequency - Max [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Differential - Input:Output	Output	Package / Case	Type	Input
Skyworks Solutions Inc. SI5330L-B00230-GMR	1:4	350 MHz	3.63 V	1.71 V	Surface Mount	1	85 °C	-40 °C	24-QFN (4x4)	No/Yes	LVDS	24-VFQFN Exposed Pad	Fanout Buffer (Distribution) Translator	CMOS HSTL LVTTL SSTL
Skyworks Solutions Inc. SI5330L-A00229-GM	1:4	350 MHz	3.63 V	1.71 V	Surface Mount	1	85 °C	-40 °C	24-QFN (4x4)	No/Yes	LVDS	24-VFQFN Exposed Pad	Fanout Buffer (Distribution) Translator	CMOS HSTL LVTTL SSTL
Skyworks Solutions Inc. SI5330B-B00206-GM	1:4	710 MHz	3.63 V	1.71 V	Surface Mount	1	85 °C	-40 °C	24-QFN (4x4)		LVDS	24-VFQFN Exposed Pad	Fanout Buffer (Distribution) Translator	CML HCSL LVDS LVPECL
Skyworks Solutions Inc. SI5330C-A00209-GM	1:4	250 MHz	3.63 V	1.71 V	Surface Mount	1	85 °C	-40 °C	24-QFN (4x4)		HCSL	24-VFQFN Exposed Pad	Fanout Buffer (Distribution) Translator	CML HCSL LVDS LVPECL
Skyworks Solutions Inc. SI5330M-B00233-GMR	1:4	250 MHz	3.63 V	1.71 V	Surface Mount	1	85 °C	-40 °C	24-QFN (4x4)	No/Yes	HCSL	24-VFQFN Exposed Pad	Fanout Buffer (Distribution) Translator	CMOS HSTL LVTTL SSTL
Skyworks Solutions Inc. SI5330H-B00221-GM	1:8	350 MHz	3.63 V	1.71 V	Surface Mount	1	85 °C	-40 °C	24-QFN (4x4)	Yes/No	SSTL	24-VFQFN Exposed Pad	Fanout Buffer (Distribution) Translator	CML HCSL LVDS LVPECL
Skyworks Solutions Inc. SI5330F-B00216-GMR	1:8	200 MHz	3.63 V	1.71 V	Surface Mount	1	85 °C	-40 °C	24-QFN (4x4)		CMOS	24-VFQFN Exposed Pad	Fanout Buffer (Distribution) Translator	CMOS HSTL LVTTL SSTL
Skyworks Solutions Inc. SI5330F-B00215-GM	1:8	200 MHz	3.63 V	1.71 V	Surface Mount	1	85 °C	-40 °C	24-QFN (4x4)		CMOS	24-VFQFN Exposed Pad	Fanout Buffer (Distribution) Translator	CMOS HSTL LVTTL SSTL
Skyworks Solutions Inc. SI5330J-A00223-GM	1:8	350 MHz	3.63 V	1.71 V	Surface Mount	1	85 °C	-40 °C	24-QFN (4x4)	Yes/No	HSTL	24-VFQFN Exposed Pad	Fanout Buffer (Distribution) Translator	CML HCSL LVDS LVPECL
Skyworks Solutions Inc. SI5330F-B00214-GMR	1:8	200 MHz	3.63 V	1.71 V	Surface Mount	1	85 °C	-40 °C	24-QFN (4x4)		CMOS	24-VFQFN Exposed Pad	Fanout Buffer (Distribution) Translator	CMOS HSTL LVTTL SSTL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.19
		10	$ 5.68
		25	$ 5.03
		80	$ 4.40
		230	$ 4.09

Description

General part information

SI5330 Series

Clock Fanout Buffer (Distribution), Translator IC 1:4 710 MHz 24-VFQFN Exposed Pad
