CA #EV03BT-004-5M
ActiveAdam Tech
TYPE 2 FEMALE PLUG 5M 32A 3 PHAS
Deep-Dive with AI
Search across all available documentation for this part.
CA #EV03BT-004-5M
ActiveAdam Tech
TYPE 2 FEMALE PLUG 5M 32A 3 PHAS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CA #EV03BT-004-5M |
|---|---|
| 1st Connector | IEC 62196-2 (Type 2) |
| 2nd Connector | 5 Ring Terminals, 1 Ferrule |
| Color | Black |
| Current Rating (Amps) | 32 A |
| Features | Charging, Electric Vehicles |
| Number of Conductors [custom] | 2 |
| Number of Conductors [custom] | 5 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -30 ░C |
| Shielding | Unshielded |
| Style | Female Plug to Leads with Terminals |
| Voltage Rating | 480 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 205.05 | |
| 10 | $ 191.52 | |||
Description
General part information
EV03BT Series

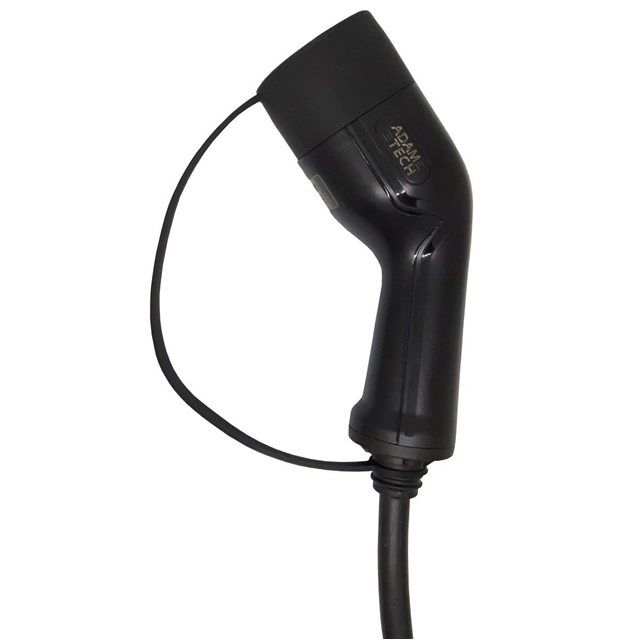

16.40' (5.00m) Power Cord Black IEC 62196-2 (Type 2) To 5 Ring Terminals, 1 Ferrule
Documents
Technical documentation and resources
