11TL1-3
ActiveHoneywell Sensing and Productivity Solutions

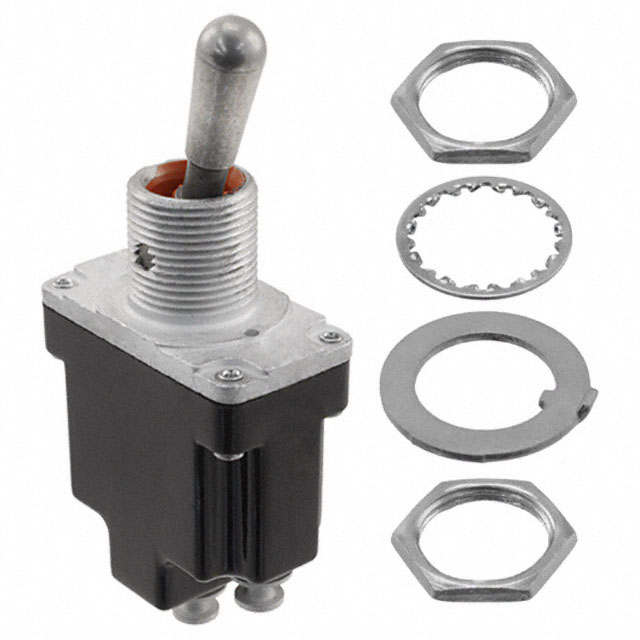

SWITCH TOGGLE SPDT 15A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
11TL1-3
ActiveHoneywell Sensing and Productivity Solutions
SWITCH TOGGLE SPDT 15A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 11TL1-3 | 11TL1 Series |
|---|---|---|
| Actuator Length [x] | 17.27 mm | 17.27 - 26.67 mm |
| Actuator Material | Nickel Plated | Nickel Plated |
| Actuator Type | Standard Round | Standard Round, Locking Lever |
| Bushing Thread | 15/32-32 | 15/32-32 |
| Circuit | SPDT | SPDT, SPST-NO, SPST, DPDT |
| Current Rating (Amps) | 15 A | 10 - 15 A |
| Illumination | Non-Illuminated | Non-Illuminated |
| Ingress Protection | Environment Sealed | Environment Sealed |
| Operating Temperature [Max] | 71 °C | 71 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Panel Cutout Dimensions [diameter] | 12.4 mm | 12.4 mm |
| Switch Function | On-On | Mom-Off-Mom, Off-Mom, On-Off, On-Off-Mom, On-On, On-Mom, On-Off-On |
| Termination Style | Solder Turret | Solder Turret |
| Voltage Rating - AC | 125 V | 125 V |
11TL1 Series
SWITCH TOGGLE SPDT 10A 125V
| Part | Illumination | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Actuator Length [x] | Switch Function | Actuator Material | Actuator Type | Ingress Protection | Bushing Thread | Voltage Rating - AC | Circuit | Current Rating (Amps) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions 11TL1-7 | Non-Illuminated | 71 °C | -65 ░C | 12.4 mm | 17.27 mm | Mom-Off-Mom | Nickel Plated | Standard Round | Environment Sealed | 15/32-32 | 125 V | SPDT | 10 A | Solder Turret |
Honeywell Sensing and Productivity Solutions 11TL1-6 | Non-Illuminated | 71 °C | -65 ░C | 12.4 mm | 17.27 mm | Off-Mom | Nickel Plated | Standard Round | Environment Sealed | 15/32-32 | 125 V | SPST-NO | 10 A | Solder Turret |
Honeywell Sensing and Productivity Solutions 11TL1-2D | Non-Illuminated | 71 °C | -65 ░C | 12.4 mm | 26.67 mm | On-Off | Nickel Plated | Locking Lever | Environment Sealed | 15/32-32 | 125 V | SPST | 15 A | Solder Turret |
Honeywell Sensing and Productivity Solutions 11TL1-5 | Non-Illuminated | 71 °C | -65 ░C | 12.4 mm | 17.27 mm | On-Off-Mom | Nickel Plated | Standard Round | Environment Sealed | 15/32-32 | 125 V | SPDT | 10 A | Solder Turret |
Honeywell Sensing and Productivity Solutions 11TL1-3 | Non-Illuminated | 71 °C | -65 ░C | 12.4 mm | 17.27 mm | On-On | Nickel Plated | Standard Round | Environment Sealed | 15/32-32 | 125 V | SPDT | 15 A | Solder Turret |
Honeywell Sensing and Productivity Solutions 11TL1-8 | Non-Illuminated | 71 °C | -65 ░C | 12.4 mm | 17.27 mm | On-Mom | Nickel Plated | Standard Round | Environment Sealed | 15/32-32 | 125 V | SPDT | 10 A | Solder Turret |
Honeywell Sensing and Productivity Solutions 11TL1-3D | Non-Illuminated | 71 °C | -65 ░C | 12.4 mm | 26.67 mm | On-On | Nickel Plated | Locking Lever | Environment Sealed | 15/32-32 | 125 V | SPDT | 15 A | Solder Turret |
Honeywell Sensing and Productivity Solutions 11TL1-1A | Non-Illuminated | 71 °C | -65 ░C | 12.4 mm | 26.67 mm | On-Off-On | Nickel Plated | Locking Lever | Environment Sealed | 15/32-32 | 125 V | DPDT | 15 A | Solder Turret |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 42.08 | |
Description
General part information
11TL1 Series
Toggle Switch SPDT Panel Mount
