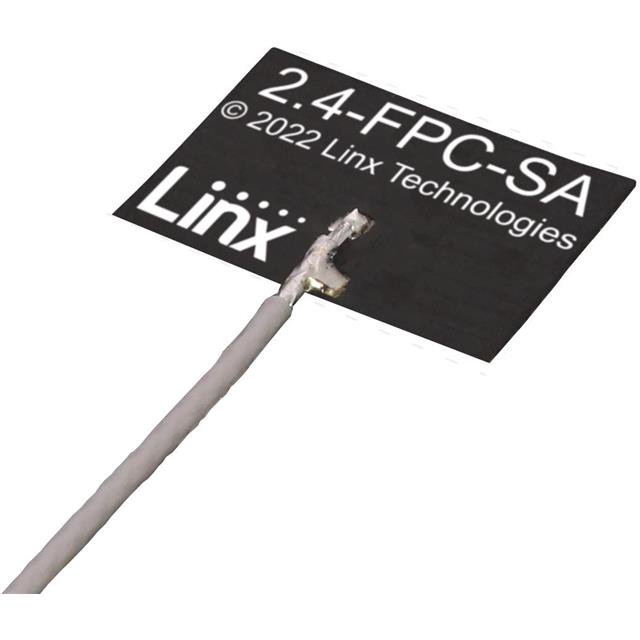

ANT-2.4-FPC-SAH100M4

Active

TE Connectivity Linx

ANT 2.4 FPC 12X8 100 CBL MHF4

Search across all available documentation for this part.

Active

TE Connectivity Linx

ANT 2.4 FPC 12X8 100 CBL MHF4

Technical Specifications

Parameters and characteristics commom to parts in this series

ANT 2.4 FPC 12X8 50MM CBL MHF4

Part	Mounting Type	Frequency Range [Max]	Frequency Range [Min]	Termination	Applications	Power - Max [Max]	Gain	Features	Features	Height (Max)	Height (Max) [Max]	VSWR	Number of Bands	Antenna Type
TE Connectivity Linx ANT-2.4-FPC-SAH50M4	Adhesive	2.5 GHz	2.4 GHz	MHF4	Bluetooth, ISM, Wi-Fi, Zigbee™	2 W	0.1 dBi	50 mm	Cable	0.1 mm	0.004 in	4.1	1	PCB Trace
TE Connectivity Linx ANT-2.4-FPC-SAH100UF	Adhesive	2.5 GHz	2.4 GHz	IPEX MHF1 (U.FL)	Bluetooth, ISM, Wi-Fi, Zigbee™	2 W	0.1 dBi	100 mm	Cable	0.1 mm	0.004 in	4.1	1	PCB Trace
TE Connectivity Linx ANT-2.4-FPC-SAH150M4	Adhesive	2.5 GHz	2.4 GHz	MHF4	Bluetooth, ISM, Wi-Fi, Zigbee™	2 W	0.1 dBi		Cable - 150mm	0.1 mm	0.004 in	4.1	1	PCB Trace
TE Connectivity Linx ANT-2.4-FPC-SAH100M4	Adhesive	2.5 GHz	2.4 GHz	MHF4	Bluetooth, ISM, Wi-Fi, Zigbee™	2 W	0.1 dBi	100 mm	Cable	0.1 mm	0.004 in	4.1	1	PCB Trace
TE Connectivity Linx ANT-2.4-FPC-SAH150UF	Adhesive	2.5 GHz	2.4 GHz	IPEX MHF1 (U.FL)	Bluetooth, ISM, Wi-Fi, Zigbee™	2 W	0.1 dBi		Cable - 150mm	0.1 mm	0.004 in	4.1	1	PCB Trace
TE Connectivity Linx ANT-2.4-FPC-SAH50UF	Adhesive	2.5 GHz	2.4 GHz	I-PEX MHF1 (U.FL), IPEX MHF1 (U.FL)	Bluetooth, ISM, Wi-Fi, Zigbee™	2 W	0.1 dBi	50 mm	Cable	0.1 mm	0.004 in	4.1	1	PCB Trace

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.45GHz Bluetooth, ISM, Wi-Fi, Zigbee™ PCB Trace RF Antenna 2.4GHz ~ 2.5GHz 0.1dBi MHF4 Adhesive

Technical documentation and resources

No documents available
