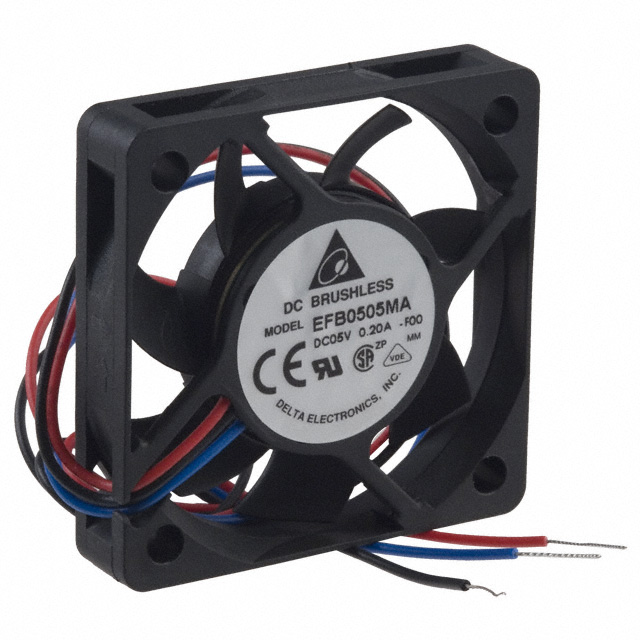

EFB0505MA-F00

Active

Delta Electronics

FAN AXIAL 50X10MM BALL 5VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 50X10MM BALL 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	EFB0505MA-F00

Air Flow	0.258 m³/min
Air Flow	9.2 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	25 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	0.65 W
RPM	4500 RPM
Size / Dimension [x]	50 mm
Size / Dimension [z]	50 mm
Static Pressure	0.113 in H2O
Static Pressure	28.1 Pa
Termination	3 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	5.5 V
Voltage Range [Min]	4.5 V
Weight	0.057 lb
Weight	25.85 g
Width [y]	10 mm

Part	Features	Fan Type	Voltage - Rated	Weight	Weight	Bearing Type	Material - Blade	Power (Watts)	Lifetime @ Temp.	Static Pressure	Static Pressure	RPM	Air Flow	Air Flow	Termination	Size / Dimension [z]	Size / Dimension [x]	Noise	Width [y]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Frame	Approval Agency	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)
Delta Electronics EFB0505MA-F00	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	5 V	0.057 lb	25.85 g	Ball	Plastic	0.65 W	70000 Hrs	0.113 in H2O	28.1 Pa	4500 RPM	0.258 m³/min	9.2 CFM	3 Wire Leads	50 mm	50 mm	25 dB(A)	10 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	CE CSA UL VDE	4.5 V	5.5 V
Delta Electronics EFB0505LA-R00	Locked Rotor Sensor	Tubeaxial	5 V	0.057 lb	25.85 g	Ball	Plastic	350 mW	70000 Hrs	0.068 in H2O	17 Pa	3500 RPM	0.21 mł/min	7.5 CFM	3 Wire Leads	50 mm	50 mm	18 dB(A)	10 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	CE CSA UL VDE	4.5 V	5.5 V	70 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 5VDC Square - 50mm L x 50mm H Ball 9.2 CFM (0.258m³/min) 3 Wire Leads
