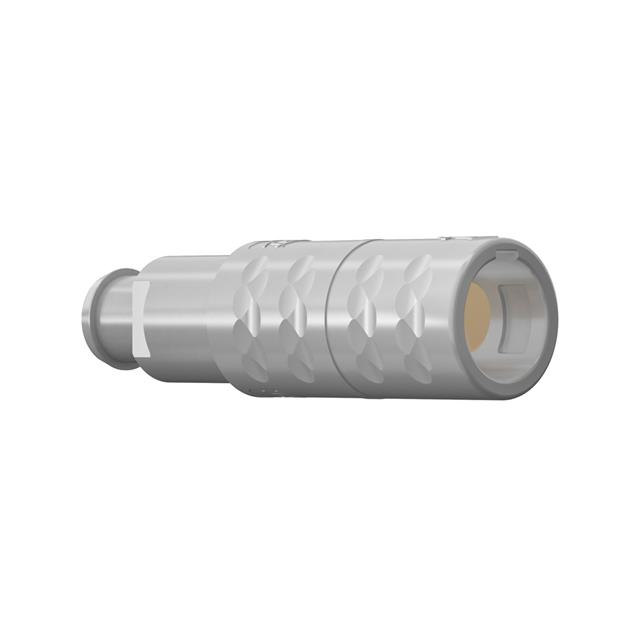

K21MC7-P06LFD0-397S

Active

ODU

CONN RCPT FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

K21MC7-P06LFD0-397S

Active

ODU

CONN RCPT FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	K21MC7-P06LFD0-397S

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Polysulfone (PSU)
Cable Opening [Max] [diameter]	0.154 in
Cable Opening [Max] [diameter]	3.9 mm
Cable Opening [Min] [diameter]	2.7 mm
Cable Opening [Min] [diameter]	0.106 in
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	4.55 A
Fastening Type	Detent Lock, Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	C
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shielding	Unshielded

K21MC7-P Series

Part	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Shell Material	Ingress Protection	Contact Finish - Mating	Mounting Type	Backshell Material, Plating	Shell Size - Insert	Current Rating (Amps)	Orientation	Fastening Type	Applications	Features	Number of Positions	Shielding	Connector Type	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Insert Material	Primary Material	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [custom]	Cable Opening [custom]
ODU K21MC7-P08LFD0-527S	Brass	-50 °C	120 °C	Gray	Polysulfone (PSU)	IP50	Gold	Free Hanging (In-Line)	Polysulfone (PSU)	1	3.85 A	C	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	8	Unshielded	Receptacle Female Sockets	0.157 in	0.205 in	4 mm	5.2 mm	Polyetheretherketone (PEEK)	Plastic
ODU K21MC7-P06LFD0-397S	Brass	-50 °C	120 °C	Gray	Polysulfone (PSU)	IP50	Gold	Free Hanging (In-Line)	Polysulfone (PSU)	1	4.55 A	C	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	6	Unshielded	Receptacle Female Sockets					Polyetheretherketone (PEEK)	Plastic	2.7 mm	0.154 in	3.9 mm	0.106 in
ODU K21MC7-P02LPH0-527S	Brass	-50 °C	120 °C	Gray	Polysulfone (PSU)	IP50	Gold	Free Hanging (In-Line)	Polysulfone (PSU)	1	14 A	C	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	2	Unshielded	Receptacle Female Sockets	0.157 in	0.205 in	4 mm	5.2 mm	Polyetheretherketone (PEEK)	Plastic
ODU K21MC7-P05LJG0-657S	Brass	-50 °C	120 °C	Gray	Polysulfone (PSU)	IP50	Gold	Free Hanging (In-Line)	Polysulfone (PSU)	1	5.5 Amps	C	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief		Unshielded	Receptacle Female Sockets					Polyetheretherketone (PEEK)	Plastic					0.209 in 0.256 in	5.3 mm 6.5 mm
ODU K21MC7-P09LCC0-527S	Brass	-50 °C	120 °C	Gray	Polysulfone (PSU)	IP50	Gold	Free Hanging (In-Line)	Polysulfone (PSU)	1	2.6 A	C	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	9	Unshielded	Receptacle Female Sockets	0.157 in	0.205 in	4 mm	5.2 mm	Polyetheretherketone (PEEK)	Plastic
ODU K21MC7-P08LFG0-527S	Brass	-50 °C	120 °C	Gray	Polysulfone (PSU)	IP50	Gold	Free Hanging (In-Line)	Polysulfone (PSU)	1	3.85 A	C	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	8	Unshielded	Receptacle Female Sockets	0.157 in	0.205 in	4 mm	5.2 mm	Polyetheretherketone (PEEK)	Plastic
ODU K21MC7-P05LJG0-397S	Brass	-50 °C	120 °C	Gray	Polysulfone (PSU)	IP50	Gold	Free Hanging (In-Line)	Polysulfone (PSU)	1	5.5 Amps	C	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief		Unshielded	Receptacle Female Sockets					Polyetheretherketone (PEEK)	Plastic	2.7 mm	0.154 in	3.9 mm	0.106 in
ODU K21MC7-P10LCC0-657S	Brass	-50 °C	120 °C	Gray	Polysulfone (PSU)	IP50	Gold	Free Hanging (In-Line)	Polysulfone (PSU)	1	2.2 A	C	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	10	Unshielded	Receptacle Female Sockets					Polyetheretherketone (PEEK)	Plastic					0.209 in 0.256 in	5.3 mm 6.5 mm
ODU K21MC7-P07LFD0-657S	Brass	-50 °C	120 °C	Gray	Polysulfone (PSU)	IP50	Gold	Free Hanging (In-Line)	Polysulfone (PSU)	1	3.9 A	C	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	7	Unshielded	Receptacle Female Sockets					Polyetheretherketone (PEEK)	Plastic					0.209 in 0.256 in	5.3 mm 6.5 mm
ODU K21MC7-P02LPH0-657S	Brass	-50 °C	120 °C	Gray	Polysulfone (PSU)	IP50	Gold	Free Hanging (In-Line)	Polysulfone (PSU)	1	14 A	C	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	2	Unshielded	Receptacle Female Sockets					Polyetheretherketone (PEEK)	Plastic					0.209 in 0.256 in	5.3 mm 6.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.29

Description

General part information

K21MC7-P Series

6 Position Circular Connector Receptacle, Female Sockets Solder Cup
