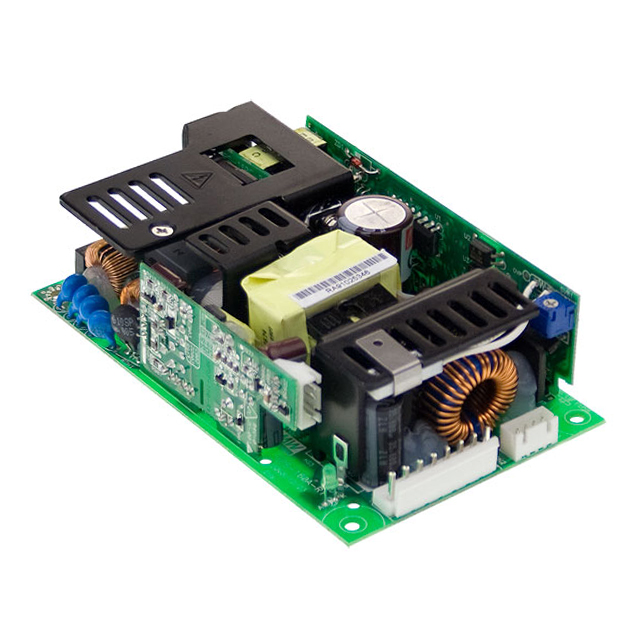

RPS-160-15

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 15V 110W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 15V 110W

Technical Specifications

Parameters and characteristics for this part

Specification	RPS-160-15

Applications	Household Appliances, Medical
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	7.3 A
Efficiency	87 %
Features	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	155 W
Power (Watts)	110 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1.36 "
Size / Dimension [z]	34.5 mm
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	15 V

Part	Features	Type	Voltage - Isolation	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Number of Outputs	Mounting Type	Efficiency	Minimum Load Required	Current - Output 1	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Power (Watts)
MEAN WELL USA Inc. RPS-160-15	Adjustable Output Remote Sense Universal Input	Open Frame	4000 V	Household Appliances Medical	90 VAC 127 VDC	264 VAC 370 VDC	15 V	1	Chassis Mount	87 %		7.3 A	CB CE cURus TUV	-20 °C	70 °C	5 in	1.36 "	3 "	76.2 mm	127 mm	34.5 mm	155 W	110 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC, 127 ~ 370 VDC Input
