BC501SM
ActiveMPD (Memory Protection Devices)

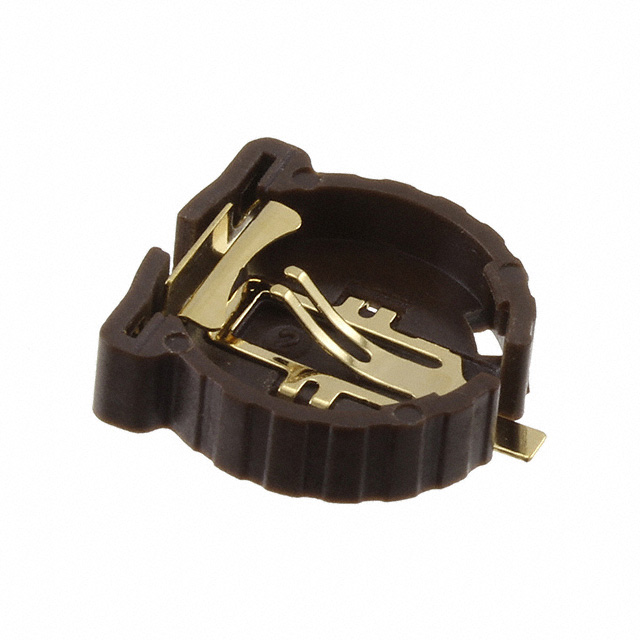

BATTERY HOLDER COIN 12MM SMD
BC501SM
ActiveMPD (Memory Protection Devices)
BATTERY HOLDER COIN 12MM SMD
Description
General part information
BC501 Series
Battery Holder (Open) Coin, 12.0mm 1 Cell SMD (SMT) Tab
Technical Specifications
Parameters and characteristics for this part
| Specification | BC501SM |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size Dimension | 12 mm |
| Battery Series | 1220 |
| Battery Type | Coin Cell |
| Function | Holder |
| Height Above Board | 0.157 in |
| Mounting Type | Surface Mount, PCB |
| Number of Cells | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Style | Holder (Open) |
| Termination Style | SMD (SMT) Tab |
