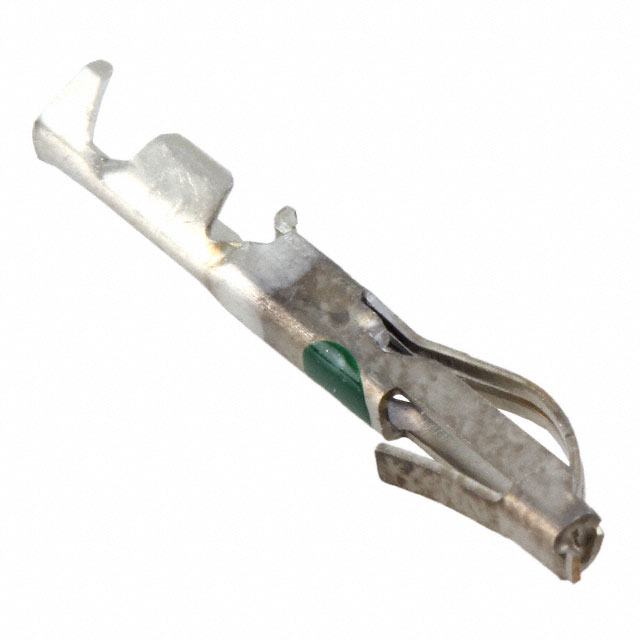

583853-5

Active

TE Connectivity Raychem Cable Protection

TERM EDGE TWIN LF 20-24AWG CRIMP

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

TERM EDGE TWIN LF 20-24AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Contact Finish
TE Connectivity Raychem Cable Protection 1-583616-0	Crimp	15 µin	0.38 µm	Non-Gendered	24 AWG	28 AWG	Phosphor Bronze	Gold
TE Connectivity Raychem Cable Protection 583853-2	Crimp	15 µin	0.38 µm	Non-Gendered	20 AWG	24 AWG	Phosphor Bronze	Gold
TE Connectivity Raychem Cable Protection 583853-3	Crimp	30 Áin	0.76 Ám	Non-Gendered	20 AWG	24 AWG	Phosphor Bronze	Gold
TE Connectivity Raychem Cable Protection 583853-5	Crimp	30 Áin	0.76 Ám	Non-Gendered	20 AWG	24 AWG	Phosphor Bronze	Gold
TE Connectivity Raychem Cable Protection 583853-4	Crimp	15 µin	0.38 µm	Non-Gendered	20 AWG	24 AWG	Phosphor Bronze	Gold
TE Connectivity Raychem Cable Protection 1-583853-0	Crimp	15 µin	0.38 µm	Non-Gendered	20 AWG	24 AWG	Phosphor Bronze	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50000	$ 0.88

General part information

Edge Terminal Non-Gendered 20-24 AWG Crimp Gold

Technical documentation and resources
