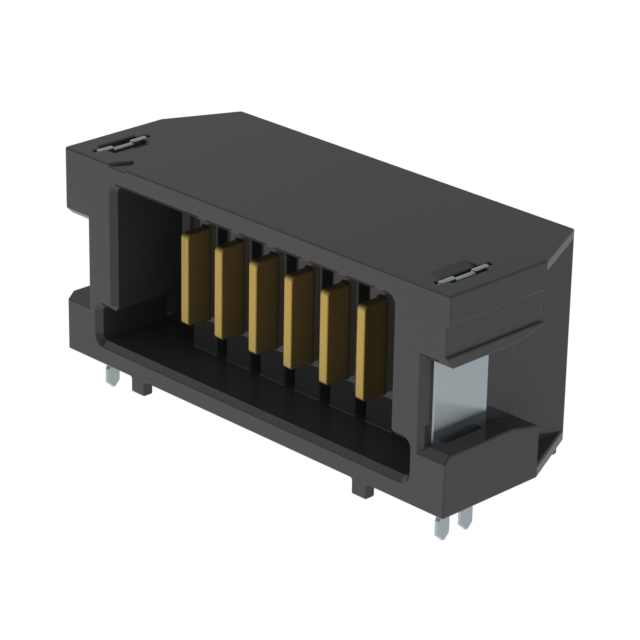

Specification	UMPT-06-01-L-RA-WT-M-TR

Color	Black
Connector Type	Male Blades, Header
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Fastening Type	Latch Lock
Features	Solder Retention
Material - Insulation	LCP, Liquid Crystal Polymer
Mounting Type	Right Angle, Surface Mount
Number of Positions	6
Number of Rows	1
Pitch	0.079 in
Termination	Solder

UMPT-06 Series

Part	Contact Finish Thickness	Contact Finish	Material - Insulation	Contact Material	Color	Termination	Number of Positions	Mounting Type	Connector Type	Number of Rows	Features	Pitch	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Fastening Type
Samtec Inc. UMPT-06-01-L-RA-WT-TR	10 Ąin	Gold	LCP Liquid Crystal Polymer	Copper Alloy	Black	Solder	6	Right Angle Surface Mount	Header Male Blades	1	Solder Retention	0.079 in
Samtec Inc. UMPT-06-02.5-L-V-S-TR	10 Ąin	Gold	LCP Liquid Crystal Polymer	Copper Alloy	Black	Solder	6	Surface Mount	Header Male Blades	1		0.079 in	125 °C	-55 °C	650 V
Samtec Inc. UMPT-06-01-L-RA-WT-M-TR	10 Ąin	Gold	LCP Liquid Crystal Polymer	Copper Alloy	Black	Solder	6	Right Angle Surface Mount	Header Male Blades	1	Solder Retention	0.079 in				Latch Lock
Samtec Inc. UMPT-06-07.5-L-V-S-W-TR	10 Ąin	Gold	LCP Liquid Crystal Polymer	Copper Alloy	Black	Solder	6	Surface Mount	Header Male Blades	1	Solder Retention	0.079 in	125 °C	-55 °C	650 V
Samtec Inc. UMPT-06-07.5-L-V-S-TR	10 Ąin	Gold	LCP Liquid Crystal Polymer	Copper Alloy	Black	Solder	6	Surface Mount	Header Male Blades	1		0.079 in	125 °C	-55 °C	650 V
Samtec Inc. UMPT-06-02.5-L-V-S-W-P-TR	10 Ąin	Gold	LCP Liquid Crystal Polymer	Copper Alloy	Black	Solder	6	Surface Mount	Header Male Blades	1	Solder Retention	0.079 in	125 °C	-55 °C	650 V	Latch Lock

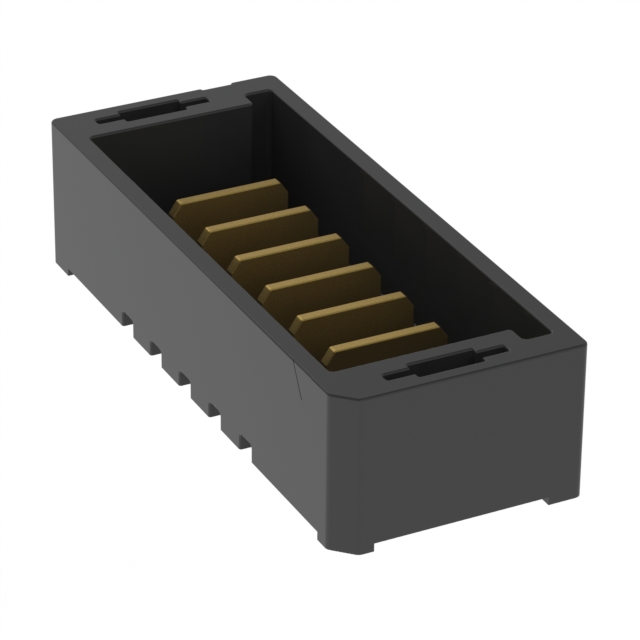

Samtec Inc. UMPT-06-01.5-L-V-S-TR	10 Ąin	Gold	LCP Liquid Crystal Polymer	Copper Alloy	Black	Solder	6	Surface Mount	Header Male Blades	1		0.079 in	125 °C	-55 °C	650 V
Samtec Inc. UMPT-06-06.5-L-V-S-W-TR	10 Ąin	Gold	LCP Liquid Crystal Polymer	Copper Alloy	Black	Solder	6	Surface Mount	Header Male Blades	1	Solder Retention	0.079 in	125 °C	-55 °C	650 V

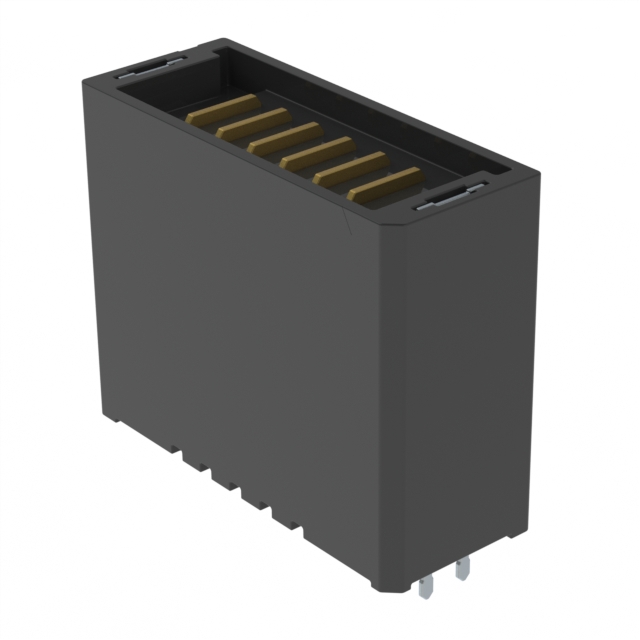

Samtec Inc. UMPT-06-12.5-L-V-S-W-TR	10 Ąin	Gold	LCP Liquid Crystal Polymer	Copper Alloy	Black	Solder	6	Surface Mount	Header Male Blades	1	Solder Retention	0.079 in	125 °C	-55 °C	650 V
Samtec Inc. UMPT-06-01-S-RA-WT-TR	30 µin	Gold	LCP Liquid Crystal Polymer	Copper Alloy	Black	Solder	6	Right Angle Surface Mount	Header Male Blades	1	Solder Retention	0.079 in
