1394090-1

Active

TE CONNECTIVITY

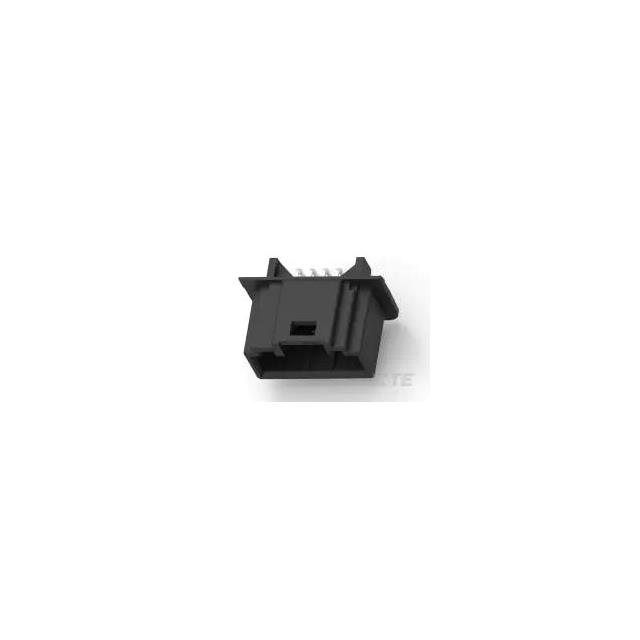

6POS MQS .63 HEADER 90DEG

Search across all available documentation for this part.

Active

TE CONNECTIVITY

6POS MQS .63 HEADER 90DEG

Technical Specifications

Parameters and characteristics for this part

Specification	1394090-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Mating	6.7 mm
Contact Length - Mating	0.264 in
Contact Length - Post	0.319 in
Contact Length - Post	8.1 mm
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Color	Black
Insulation Height	0.681 in
Insulation Height	17.3 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

6POS MQS .63 HEADER 90DEG

Part	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Rows	Mounting Type	Number of Positions Loaded	Insulation Height	Insulation Height	Connector Type	Contact Length - Post	Contact Length - Post	Termination	Contact Type	Contact Length - Mating	Contact Length - Mating	Insulation Material	Contact Shape	Shrouding	Insulation Color	Contact Finish - Post	Style
TE CONNECTIVITY 1394090-1	6	1 çm	39.4 çin	1 µm	39.4 µin	Latch Holder	1	Through Hole, Right Angle	All	0.681 in	17.3 mm	Header	0.319 in	8.1 mm	Solder	Male Pin	6.7 mm	0.264 in	Polybutylene Terephthalate (PBT), Glass Filled	Square	Shrouded - 4 Wall	Black	Tin	Board to Cable/Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Horizontal, Wire-to-Board, 6 Position, 1 Rows, 2.85mm [.11in] Centerline, Tin (Sn), Printed Circuit Board, Signal, Black
