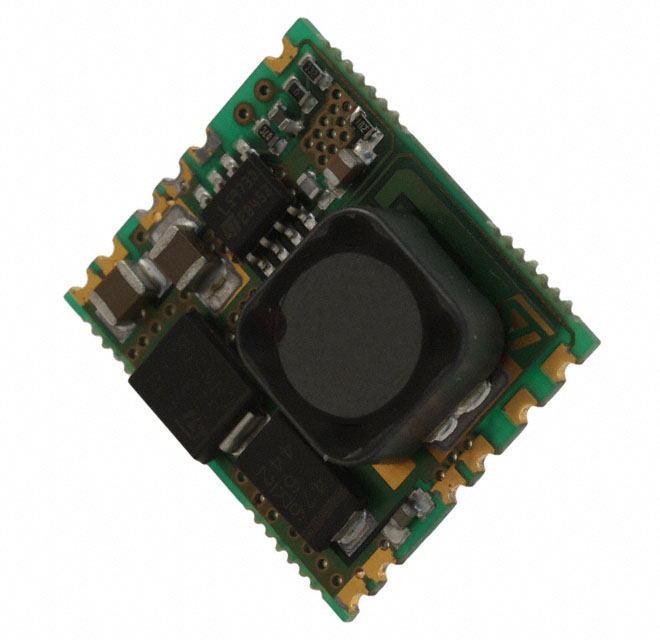

GS-R12F0002.0

Obsolete

STMicroelectronics

DC DC CONVERTER 1.235-5.5V

Search across all available documentation for this part.

Obsolete

STMicroelectronics

DC DC CONVERTER 1.235-5.5V

Technical Specifications

Parameters and characteristics for this part

Part	Features	Number of Outputs	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Type	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Efficiency	Voltage - Input (Min) [Min]	Mounting Type	Applications
STMicroelectronics GS-R12F0002.0	OCP OTP OVP Remote On/Off	1	5.5 V	1.235	1.05 in	0.28 "	7 mm	26.7 mm	0.89 in	22.6 mm	Non-Isolated PoL Module	2 A	15 V	-25 °C	85 °C	12-SMD Module	85 %	4.5 V	Surface Mount	ITE (Commercial)
STMicroelectronics GS-R12FS0001.9		1	5.5 V	1.235	1.52 in	0.5 in	12.7 mm	38.7 mm	0.18 in	4.5 mm	Non-Isolated PoL Module	1.9 A	15 V	-25 °C	85 °C	10-SMD Module	83 %	4.5 V	Surface Mount	ITE (Commercial)
STMicroelectronics GS-R12FV0001.9		1	5.5 V	1.235	1.52 in	0.5 in	12.7 mm	38.7 mm	0.18 in	4.5 mm	Non-Isolated PoL Module	1.9 A	15 V	-25 °C	85 °C	10-SIP Module	83 %	4.5 V	Through Hole	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 1.235 ~ 5.5V 2A 4.5V - 15V Input
