ERF8-005-05.0-S-DV-L-K-TR

Active

Samtec Inc.

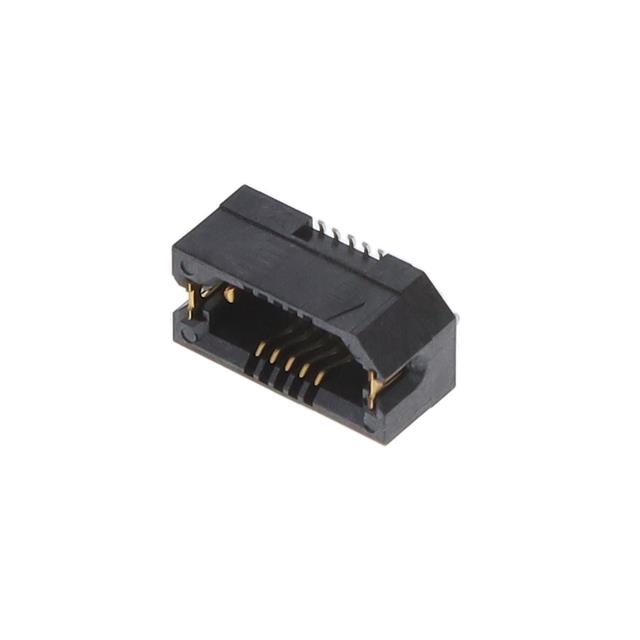

CONN MICRO HIGH SPEED SOCKET STRIP SKT 10 POS 0.8MM SOLDER ST SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ERF8 Series Other Related Documents 01 +1

ERF8-005-05.0-S-DV-L-K-TR

Active

Samtec Inc.

CONN MICRO HIGH SPEED SOCKET STRIP SKT 10 POS 0.8MM SOLDER ST SMD T/R

Deep-Dive with AI

DocumentsDatasheet ERF8 Series Other Related Documents 01 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERF8-005-05.0-S-DV-L-K-TR

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide, Pick and Place, Latches
Height Above Board	0.21 in
Height Above Board	5.33 mm
Mated Stacking Heights	14 mm, 10 mm, 13 mm, 20 mm, 7 mm
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERF8-005 Series

Part	Number of Positions	Mated Stacking Heights	Height Above Board	Height Above Board	Features	Contact Finish	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Height Above Board [z]	Height Above Board [z]
Samtec Inc. ERF8-005-05.0-S-DV-K-TR	10	7 mm 10 mm 13 mm 14 mm 20 mm	0.21 in	5.33 mm	Board Guide Pick and Place	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	0.76 Ám	30 Áin	Surface Mount
Samtec Inc. ERF8-005-05.0-S-DV-TR	10	7 mm 10 mm 13 mm 14 mm 20 mm	0.21 in	5.33 mm	Board Guide	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	0.76 Ám	30 Áin	Surface Mount
Samtec Inc. ERF8-005-05.0-L-DV-L-TR	10	7 mm 10 mm 13 mm 14 mm 20 mm	0.21 in	5.33 mm	Board Guide Latches	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	0.25 Ám	10 Áin	Surface Mount
Samtec Inc. ERF8-005-07.0-L-DV-TR	10	9 mm 12 mm 15 mm 16 mm 22 mm			Board Guide	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	0.25 Ám	10 Áin	Surface Mount	0.285 in	7.24 mm
Samtec Inc. ERF8-005-05.0-L-DV-TR	10	7 mm 10 mm 13 mm 14 mm 20 mm	0.21 in	5.33 mm	Board Guide	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	0.25 Ám	10 Áin	Surface Mount
Samtec Inc. ERF8-005-07.0-S-DV-EGP-TR	10	9 mm 12 mm 15 mm 16 mm 22 mm			Board Guide	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	0.76 Ám	30 Áin	Surface Mount	0.285 in	7.24 mm
Samtec Inc. ERF8-005-05.0-S-DV-L-K-TR	10	7 mm 10 mm 13 mm 14 mm 20 mm	0.21 in	5.33 mm	Board Guide Latches Pick and Place	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	0.76 Ám	30 Áin	Surface Mount
Samtec Inc. ERF8-005-07.0-S-DV-K-TR	10	9 mm 12 mm 15 mm 16 mm 22 mm			Board Guide Pick and Place	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	0.76 Ám	30 Áin	Surface Mount	0.285 in	7.24 mm
Samtec Inc. ERF8-005-05.0-S-DV-L-TR	10	7 mm 10 mm 13 mm 14 mm 20 mm	0.21 in	5.33 mm	Board Guide Latches	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	0.76 Ám	30 Áin	Surface Mount
