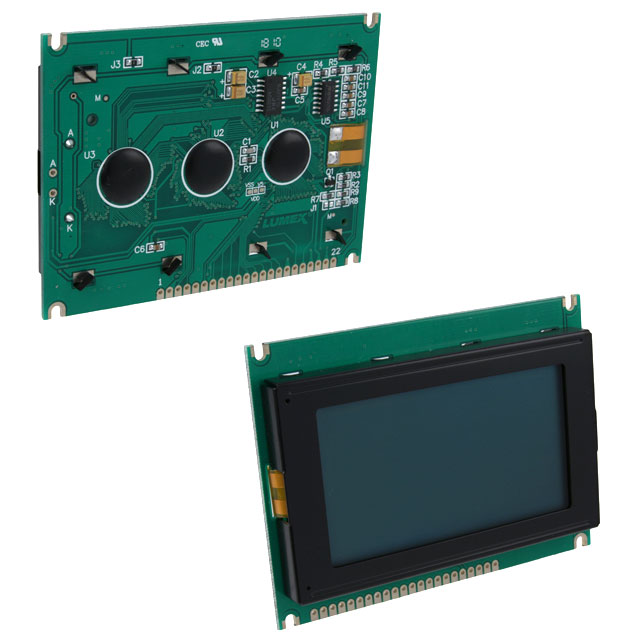

LCR-U12864GSF-WH

Active

Lumex Opto/Components Inc.

LCD MOD GRAPHIC 128X64 STN

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD GRAPHIC 128X64 STN

Technical Specifications

Parameters and characteristics for this part

LCD MOD GRAPHIC 128X64 STN

Part	Background Color	Backlight	Interface	Viewing Area [x]	Viewing Area [y]	Display Type	Dot Pitch [x]	Dot Pitch [y]	Dot Pixels [y]	Dot Pixels [x]	Graphics Color	Dot Size [custom]	Dot Size [custom]	Display Mode
Lumex Opto/Components Inc. LCR-U12864GSF-WH	Gray	LED - White	Parallel, 8-Bit	70 mm	38.8 mm	STN - Super-Twisted Nematic	0.52 mm	0.52 mm	64	128	Blue	0.48 mm	0.48 mm	Transflective

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Transflective Blue STN - Super-Twisted Nematic Parallel, 8-Bit 128 x 64

Technical documentation and resources

No documents available
