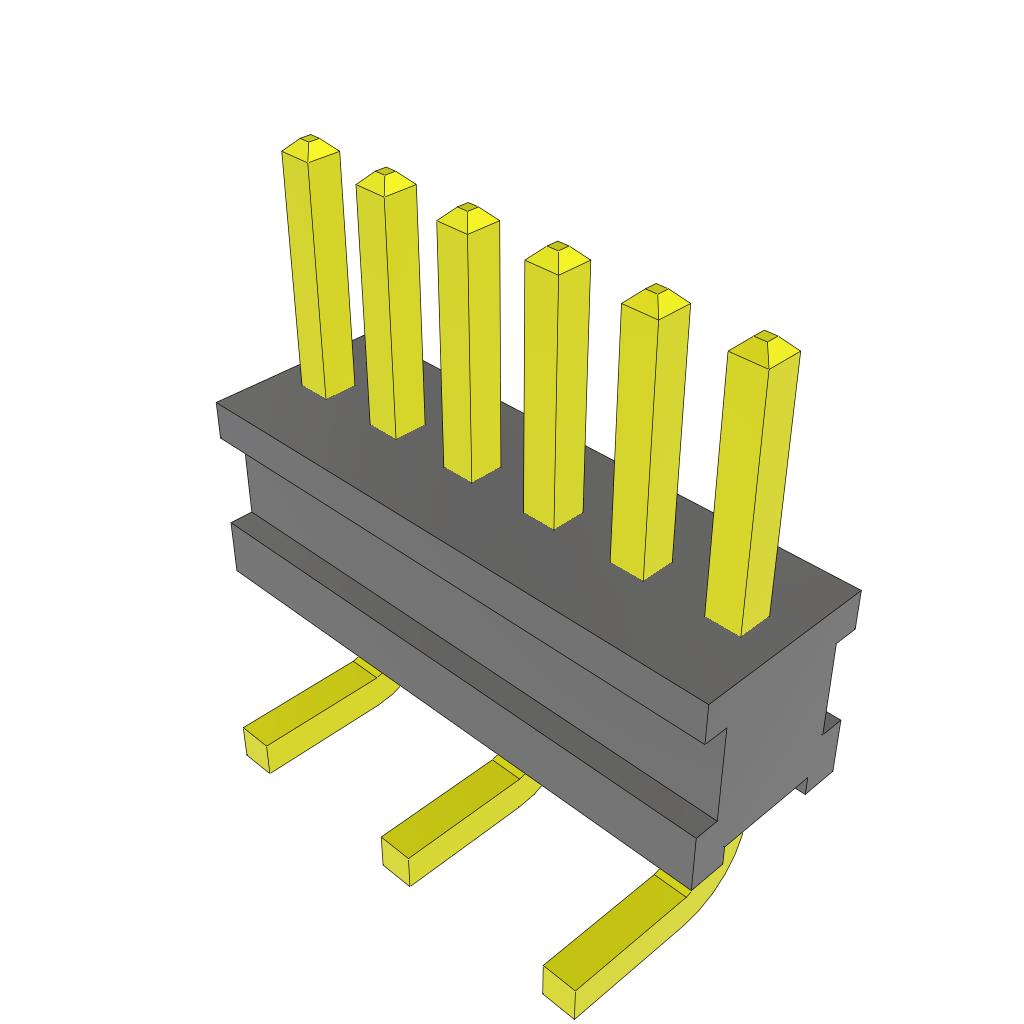

FTR-106-03-G-S
ActiveSamtec Inc.
CONN HEADER SMD 6POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
FTR-106-03-G-S
ActiveSamtec Inc.
CONN HEADER SMD 6POS 1.27MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FTR-106-03-G-S |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 3 µin |
| Contact Finish Thickness - Post | 0.076 µm |
| Contact Length - Mating | 0.125 in |
| Contact Length - Mating | 3.18 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3.1 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
FTR-106 Series
| Part | Contact Shape | Contact Material | Material Flammability Rating | Insulation Material | Termination | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Fastening Type | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Connector Type | Number of Rows | Shrouding | Contact Type | Insulation Height | Insulation Height | Mounting Type | Contact Finish - Mating | Insulation Color | Contact Length - Mating | Features | Contact Length - Mating [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Square | Phosphor Bronze | UL94 V-0 | Liquid Crystal Polymer (LCP) | Solder | 12 | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | 0.125 in | 3.18 mm | All | 0.05 in | 1.27 mm | Push-Pull | 3.1 A | -55 °C | 125 °C | Tin | Header | 2 | Unshrouded | Male Pin | 0.1 in | 2.54 mm | Surface Mount | Gold | Black | |||||
Samtec Inc. | Square | Phosphor Bronze | UL94 V-0 | Liquid Crystal Polymer (LCP) | Solder | 6 | 30 Áin | 0.76 Ám | 0.43 in | All | 0.05 in | 1.27 mm | Push-Pull | 3.1 A | -55 °C | 125 °C | Tin | Header | 1 | Unshrouded | Male Pin | 0.1 in | 2.54 mm | Surface Mount | Gold | Black | 10.92 mm | |||||||
Samtec Inc. | Square | Phosphor Bronze | UL94 V-0 | Liquid Crystal Polymer (LCP) | Solder | 12 | 10 çin | 0.25 çm | 2.54 mm | 0.1 in | 5.84 mm | All | 0.05 in | 1.27 mm | Push-Pull | 3.1 A | -55 °C | 125 °C | Gold | Header | 2 | Unshrouded | Male Pin | 0.1 in | 2.54 mm | Surface Mount | Gold | Black | Pick and Place | 0.23 in | 3 µin | 0.076 µm | ||
Samtec Inc. | Square | Phosphor Bronze | UL94 V-0 | Liquid Crystal Polymer (LCP) | Solder | 6 | 10 çin | 0.25 çm | 0.205 in | 5.21 mm | All | 0.05 in | 1.27 mm | Push-Pull | 3.1 A | -55 °C | 125 °C | Gold | Header | 1 | Unshrouded | Male Pin | 0.1 in | 2.54 mm | Surface Mount | Gold | Black | 3 µin | 0.076 µm | |||||
Samtec Inc. | Square | Phosphor Bronze | UL94 V-0 | Liquid Crystal Polymer (LCP) | Solder | 12 | 2.54 mm | 0.1 in | 5.84 mm | All | 0.05 in | 1.27 mm | Push-Pull | 3.1 A | -55 °C | 125 °C | Tin | Header | 2 | Unshrouded | Male Pin | 0.1 in | 2.54 mm | Surface Mount | Black | 0.23 in | ||||||||
Samtec Inc. | Square | Phosphor Bronze | UL94 V-0 | Liquid Crystal Polymer (LCP) | Solder | 12 | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | All | 0.05 in | 1.27 mm | Push-Pull | 3.1 A | -55 °C | 125 °C | Tin | Header | 2 | Unshrouded | Male Pin | 0.1 in | 2.54 mm | Surface Mount | Gold | Black | Pick and Place | ||||
Samtec Inc. | Square | Phosphor Bronze | UL94 V-0 | Liquid Crystal Polymer (LCP) | Solder | 12 | 2.54 mm | 0.1 in | 0.125 in | 3.18 mm | All | 0.05 in | 1.27 mm | Push-Pull | 3.1 A | -55 °C | 125 °C | Tin | Header | 2 | Unshrouded | Male Pin | 0.1 in | 2.54 mm | Surface Mount | Black | ||||||||
Samtec Inc. | Square | Phosphor Bronze | UL94 V-0 | Liquid Crystal Polymer (LCP) | Solder | 6 | 10 çin | 0.25 çm | 0.125 in | 3.18 mm | All | 0.05 in | 1.27 mm | Push-Pull | 3.1 A | -55 °C | 125 °C | Gold | Header | 1 | Unshrouded | Male Pin | 0.1 in | 2.54 mm | Surface Mount | Gold | Black | 3 µin | 0.076 µm | |||||
Samtec Inc. | Square | Phosphor Bronze | UL94 V-0 | Liquid Crystal Polymer (LCP) | Solder | 6 | 10 çin | 0.25 çm | 0.1 in | 2.54 mm | All | 0.05 in | 1.27 mm | Push-Pull | 3.1 A | -55 °C | 125 °C | Gold | Header | 1 | Unshrouded | Male Pin | 0.1 in | 2.54 mm | Surface Mount | Gold | Black | 3 µin | 0.076 µm | |||||
Samtec Inc. | Square | Phosphor Bronze | UL94 V-0 | Liquid Crystal Polymer (LCP) | Solder | 12 | 10 çin | 0.25 çm | 2.54 mm | 0.1 in | 0.125 in | 3.18 mm | All | 0.05 in | 1.27 mm | Push-Pull | 3.1 A | -55 °C | 125 °C | Gold | Header | 2 | Unshrouded | Male Pin | 0.1 in | 2.54 mm | Surface Mount | Gold | Black | Board Guide | 3 µin | 0.076 µm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 76 | $ 1.84 | |
Description
General part information
FTR-106 Series
Connector Header Surface Mount 6 position 0.050" (1.27mm)
