2949787

Active

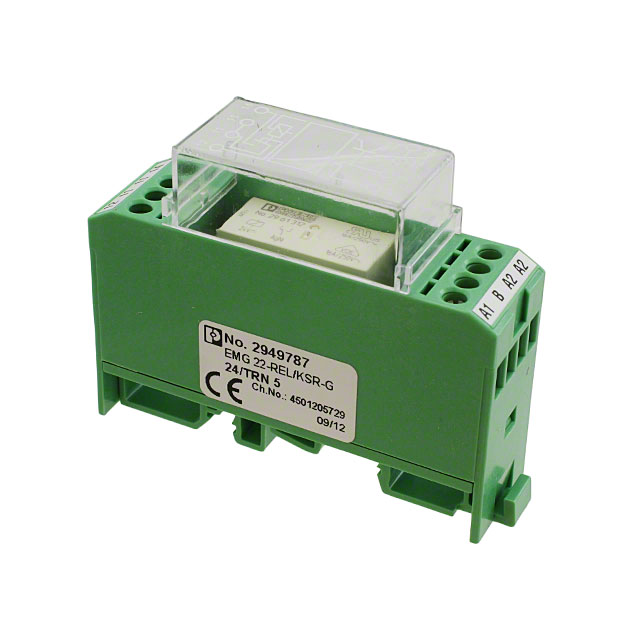

Phoenix Contact

RELAY GEN PURPOSE SPDT 5A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 5A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	2949787

Coil Current	21 mA
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	5 A
Features	Socket Included, Diode, Lighted Indicator
Mounting Type	DIN Rail
Operate Time	9 ms
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

RELAY GEN PURPOSE SPDT 5A 24V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage	Coil Type	Contact Form	Relay Type	Contact Rating (Current)	Termination Style	Release Time	Contact Material	Mounting Type	Coil Voltage	Coil Current	Operate Time	Features
Phoenix Contact 2949787	50 °C	-20 C	250 VAC, 250 VDC	Non Latching	SPDT (1 Form C)	General Purpose	5 A	Screw Terminal	10 ms	Silver Nickel (AgNi)	DIN Rail	24 VDC	21 mA	9 ms	Diode, Lighted Indicator, Socket Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 24VDC Coil DIN Rail
