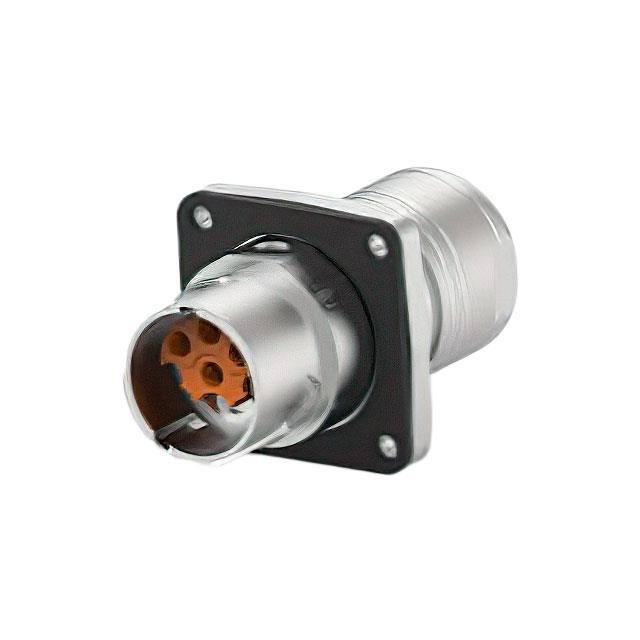

Specification	EKA201N00320500000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Bayonet Lock
Features	Cable Clamp, Backshell
Housing Color	Orange, Silver
Includes	EMI Ring, Nut, Contact Block, Shell Housing, Clip, Contact Housing, Grommet
Includes Total Count	7 pcs
Ingress Protection Description	Dust Tight, Waterproof, Water Resistant
Ingress Protection IP Rating	IP67, IP66
Insert Material	Polyamide, Nylon, Polybutylene Terephthalate, PA, PBT
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-20 °C
Orientation	Keyed
Position Types	PE, Power
Shell Material	Zinc Die Cast
Shielding	Shielded
Type	For Male Pins

EKA20 Series

Part	Material Flammability Rating	Number of Positions	Position Types	Shielding	Fastening Type	Contact Shape	Operating Temperature (Min)	Operating Temperature (Max)	Shell Material	Housing Color	Ingress Protection Description	Ingress Protection IP Rating	Type	Note	Mounting Type	Connector Type	Features	Includes	Includes Total Count	Insert Material	Orientation
TE Intercontec EKA201N00320500000	UL94 V-0	9	PE Power	Shielded	Bayonet Lock	Circular	-20 °C	130 °C	Zinc Die Cast	Orange Silver	Dust Tight Water Resistant Waterproof	IP66 IP67	For Male Pins	Contacts Not Included	Free Hanging (In-Line)	Receptacle Housing	Backshell Cable Clamp	Clip Contact Block Contact Housing EMI Ring Grommet Nut Shell Housing	7 pcs	Nylon PA PBT Polyamide Polybutylene Terephthalate	Keyed
TE Intercontec EKA201N00330500000	UL94 V-0	9	PE Power	Shielded	Bayonet Lock	Circular	-20 °C	130 °C	Zinc Die Cast	Orange Silver	Dust Tight Water Resistant Waterproof	IP66 IP67	For Male Pins	Contacts Not Included	Free Hanging (In-Line)	Receptacle Housing	Backshell Cable Clamp	Clip Contact Block Contact Housing EMI Ring Grommet Nut Shell Housing	7 pcs	Nylon PA PBT Polyamide Polybutylene Terephthalate	Keyed
TE Intercontec EKA201N00340500000	UL94 V-0	9	PE Power	Shielded	Bayonet Lock	Circular	-20 °C	130 °C	Zinc Die Cast	Orange Silver	Dust Tight Water Resistant Waterproof	IP66 IP67	For Male Pins	Contacts Not Included	Free Hanging (In-Line)	Receptacle Housing	Backshell Cable Clamp	Clip Contact Block Contact Housing EMI Ring Grommet Nut Shell Housing	7 pcs	Nylon PA PBT Polyamide Polybutylene Terephthalate	Keyed
