4-5-420

Unknown

3M (TC)

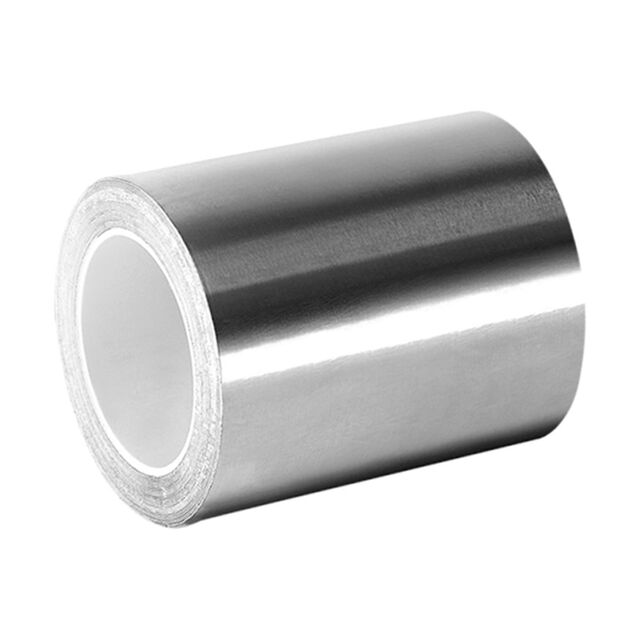

TAPE LEAD FOIL SILVER 4"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Aluminum Foil Tape Selection Guide +1

4-5-420

Unknown

3M (TC)

TAPE LEAD FOIL SILVER 4"X5YDS

Deep-Dive with AI

DocumentsDatasheet Aluminum Foil Tape Selection Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4-5-420

Thickness	0.173 mm
Thickness	6.8 mils
Thickness	0.0068 "
Thickness - Adhesive	2.1 mils
Thickness - Adhesive	0.0021 "
Thickness - Adhesive	0.053 mm
Thickness - Backing, Carrier [custom]	0.0047 "
Thickness - Backing, Carrier [custom]	0.119 mm
Thickness - Backing, Carrier [custom]	4.7 mils

420 Series

...

Part	Adhesive	Backing, Carrier	Width	Width [diameter]	Tape Type	Thickness	Thickness	Thickness	Shelf Life Start	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Temperature Range [Max]	Temperature Range [Min]	Color	Shelf Life	Length	Length	Length	Width [x]	Width [x]	Width	Length [x]	Length [x]	Width
3M (TC) 3M 420 CIRCLE-0.125"-2000	Rubber	Lead Foil	0.13 in 3.18 mm	0.125 in	Lead Foil	0.173 mm	6.8 mils	0.0068 "	Date of Manufacture	2.1 mils	0.0021 "	0.053 mm	0.0047 "	0.119 mm	4.7 mils	16 °C 60 °F	27 °C 80 °F	106 °C 225 °F	-60 °F -58 °F	Silver	18 Months
3M (TC) 3M 420 CIRCLE-0.563"-2000	Rubber	Lead Foil	0.56 in 14.3 mm	0.5625 in	Lead Foil	0.173 mm	6.8 mils	0.0068 "	Date of Manufacture	2.1 mils	0.0021 "	0.053 mm	0.0047 "	0.119 mm	4.7 mils	16 °C 60 °F	27 °C 80 °F	106 °C 225 °F	-60 °F -58 °F	Silver	18 Months
3M (TC) 3M 420 6" X 8.625"-25	Rubber	Lead Foil			Lead Foil	0.173 mm	6.8 mils	0.0068 "	Date of Manufacture	2.1 mils	0.0021 "	0.053 mm	0.0047 "	0.119 mm	4.7 mils	16 °C 60 °F	27 °C 80 °F	106 °C 225 °F	-60 °F -58 °F	Silver	18 Months	8.63 in		219.08 mm	6 in	152.4 mm
3M (TC) 3M 420 CIRCLE-0.750"-1000	Rubber	Lead Foil	0.75 in	0.75 in	Lead Foil	0.173 mm	6.8 mils	0.0068 "	Date of Manufacture	2.1 mils	0.0021 "	0.053 mm	0.0047 "	0.119 mm	4.7 mils	16 °C 60 °F	27 °C 80 °F	106 °C 225 °F	-60 °F -58 °F	Silver	18 Months						19.05 mm
3M (TC) 420SQ-1(250)	Rubber	Lead Foil			Lead Foil	0.173 mm	6.8 mils	0.0068 "	Date of Manufacture	2.1 mils	0.0021 "	0.053 mm	0.0047 "	0.119 mm	4.7 mils	16 °C 60 °F	27 °C 80 °F	106 °C 225 °F	-60 °F -58 °F	Silver	18 Months				1 in	25.4 mm		25.4 mm	1 in
3M (TC) 3M 420 0.5" X 0.5"-5	Rubber	Lead Foil	12.7 mm		Lead Foil	0.173 mm	6.8 mils	0.0068 "	Date of Manufacture	2.1 mils	0.0021 "	0.053 mm	0.0047 "	0.119 mm	4.7 mils	16 °C 60 °F	27 °C 80 °F	106 °C 225 °F	-60 °F -58 °F	Silver	18 Months	0.5 in	0.5 in	12.7 mm			0.5 in			0.5 in
3M (TC) 3M 420 8.625" X 1.25"-25	Rubber	Lead Foil			Lead Foil	0.173 mm	6.8 mils	0.0068 "	Date of Manufacture	2.1 mils	0.0021 "	0.053 mm	0.0047 "	0.119 mm	4.7 mils	16 °C 60 °F	27 °C 80 °F	106 °C 225 °F	-60 °F -58 °F	Silver	18 Months	1.25 in		31.75 mm			219.08 mm			8.63 in
3M (TC) 3M 420 6" X 6"-25	Rubber	Lead Foil			Lead Foil	0.173 mm	6.8 mils	0.0068 "	Date of Manufacture	2.1 mils	0.0021 "	0.053 mm	0.0047 "	0.119 mm	4.7 mils	16 °C 60 °F	27 °C 80 °F	106 °C 225 °F	-60 °F -58 °F	Silver	18 Months	6 in		152.4 mm	6 in	152.4 mm
3M (TC) 3M 420 1" X 1.25"-100	Rubber	Lead Foil			Lead Foil	0.173 mm	6.8 mils	0.0068 "	Date of Manufacture	2.1 mils	0.0021 "	0.053 mm	0.0047 "	0.119 mm	4.7 mils	16 °C 60 °F	27 °C 80 °F	106 °C 225 °F	-60 °F -58 °F	Silver	18 Months	1.25 in		31.75 mm	1 in	25.4 mm
3M (TC) 4-5-420						0.173 mm	6.8 mils	0.0068 "		2.1 mils	0.0021 "	0.053 mm	0.0047 "	0.119 mm	4.7 mils

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 187.04

Description

General part information

420 Series

Lead Foil Tape Rubber Adhesive Silver 4.00" (101.60mm) X 15' (4.6m) 5 yds

Documents

Technical documentation and resources

Datasheet

Aluminum Foil Tape Selection Guide

Datasheet

Metal Foil Tapes Brochure

Datasheet
