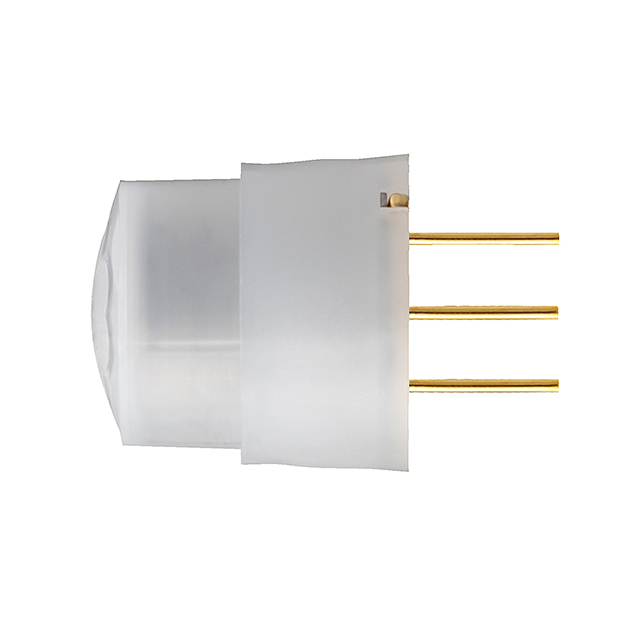

EKMB1307113K
ActivePanasonic Electric Works
LOW PROFILE LENS, 6UA, STD SENSI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EKMB1307113K
ActivePanasonic Electric Works
LOW PROFILE LENS, 6UA, STD SENSI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EKMB1307113K |
|---|---|
| Features | Pearl White, Low Profile Lens |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | Module |
| Sensing Distance | 7 m |
| Sensing Distance | 275.6 in |
| Sensor Type | PIR (Passive Infrared) |
| Trigger Type | Internal |
| Voltage - Supply [Max] | 4 V |
| Voltage - Supply [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 14.06 | |
| 10 | $ 11.13 | |||
| 25 | $ 10.54 | |||
| 100 | $ 9.08 | |||
| 450 | $ 8.49 | |||
| 950 | $ 8.05 | |||
Description
General part information
EKMB1307113 Series
Sensor PIR (Passive Infrared) 275.6" (7m) Low Profile Lens, Pearl White Module
