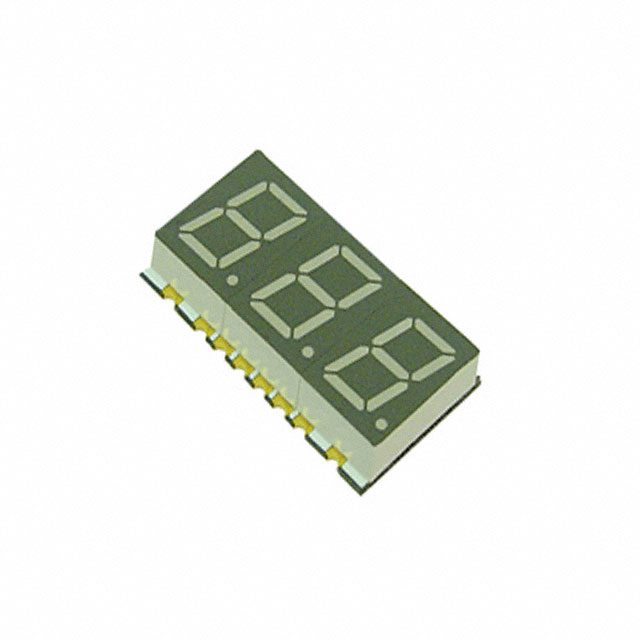

QBTS400AG
ActiveQT Brightek (QTB)
DISP 7SEG 0.4" TRPL YLW-GN 11SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBTS400AG
ActiveQT Brightek (QTB)
DISP 7SEG 0.4" TRPL YLW-GN 11SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBTS400AG |
|---|---|
| Color | Yellow-Green |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 10.16 mm |
| Digit/Alpha Size [custom] | 0.4 in |
| Display Type | 7-Segment |
| Millicandela Rating | 7 mcd |
| Number of Characters | 3 |
| Package / Case | 11-SMD, No Lead |
| Power Dissipation (Max) [Max] | 70 mW |
| Size / Dimension [x] | 0.512 in |
| Size / Dimension [x] | 13 mm |
| Size / Dimension [y] | 27.75 mm |
| Size / Dimension [y] | 1.093 in |
| Size / Dimension [z] | 3.15 mm |
| Size / Dimension [z] | 0.124 in |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.45 | |
| Digi-Reel® | 1 | $ 6.45 | ||
| Tape & Reel (TR) | 100 | $ 3.73 | ||
| 500 | $ 3.15 | |||
| 1000 | $ 2.89 | |||
| 2500 | $ 2.77 | |||
Description
General part information
QBTS400 Series
Display Modules - LED Character and Numeric Yellow-Green 7-Segment 3 Character Common Anode 2V 20mA 0.512" H x 1.093" W x 0.124" D (13.00mm x 27.75mm x 3.15mm) 11-SMD, No Lead
