000-77175

Active

AMPHENOL RF

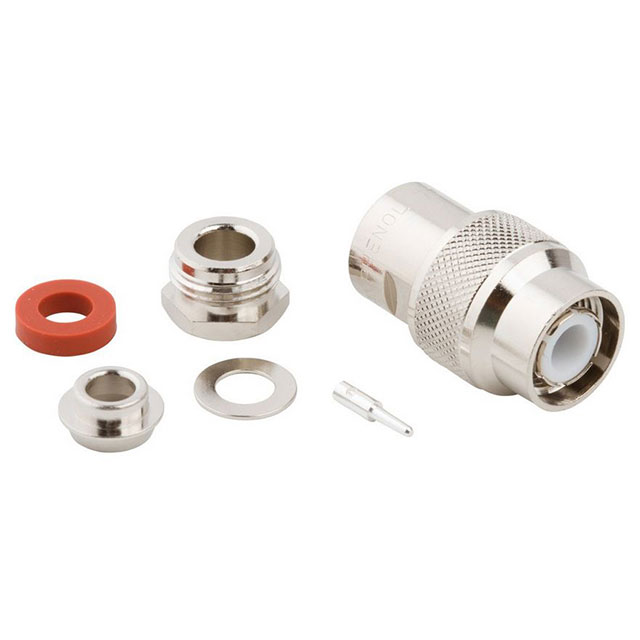

CONN TNC 0HZ TO 11GHZ 50OHM CLAMP ST CABLE MOUNT PL SILVER

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN TNC 0HZ TO 11GHZ 50OHM CLAMP ST CABLE MOUNT PL SILVER

Technical Specifications

Parameters and characteristics for this part

Specification	000-77175

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Clamp
Voltage Rating	500 V

CONN TNC 0HZ TO 11GHZ 50OHM CLAMP ST CABLE MOUNT PL SILVER

Part	Voltage Rating	Number of Ports	Connector Type	Center Contact Material	Dielectric Material	Housing Color	Shield Termination	Cable Group	Mating Cycles	Contact Termination	Connector Style	Impedance	Mounting Type	Body Material	Body Finish	Center Contact Plating
AMPHENOL RF 000-77175	500 V	1	Male Pin, Plug	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Silver	Clamp	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	500	Solder	TNC	50 Ohms	Free Hanging (In-Line)	Brass	Nickel	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
