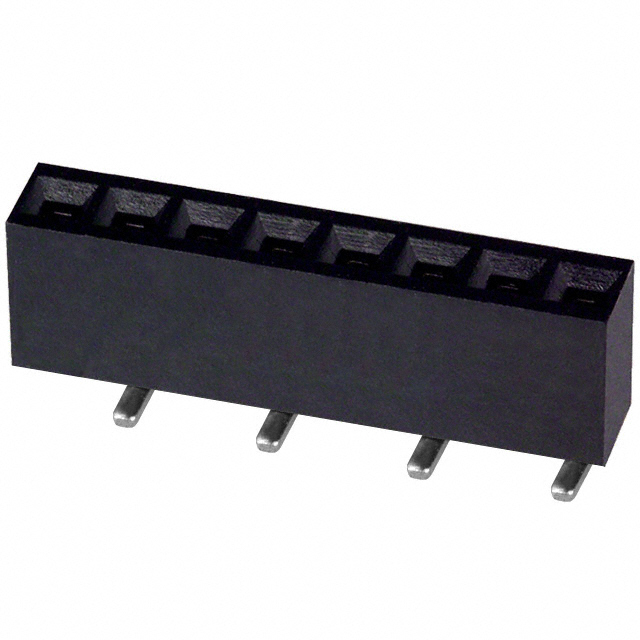

NPTC081KFXC-RC

Active

Sullins Connector Solutions

CONN HDR 8POS 0.1 TIN SMD

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN HDR 8POS 0.1 TIN SMD

Technical Specifications

Parameters and characteristics for this part

Specification	NPTC081KFXC-RC

Connector Type	Header, Top or Bottom Entry
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.28 in
Insulation Height	7.1 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	250 VDC

Part	Number of Positions Loaded	Contact Type	Contact Shape	Contact Material	Fastening Type	Pitch - Mating	Pitch - Mating	Mounting Type	Connector Type	Current Rating (Amps)	Contact Finish - Post	Voltage Rating	Number of Positions	Number of Rows	Insulation Color	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Termination	Insulation Height	Insulation Height
Sullins Connector Solutions NPTC081KFXC-RC	All	Female Socket	Square	Phosphor Bronze	Push-Pull	0.1 in	2.54 mm	Surface Mount	Header Top or Bottom Entry	3 A	Tin	250 VDC	8	1	Black	UL94 V-0	-40 °C	105 ░C	Nylon 6T Polyamide (PA6T)	Solder	0.28 in	7.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Header, Top or Bottom Entry Connector 0.100" (2.54mm) Surface Mount Tin
