EVB_RT6255AHGJ6F

Active

Richtek USA Inc.

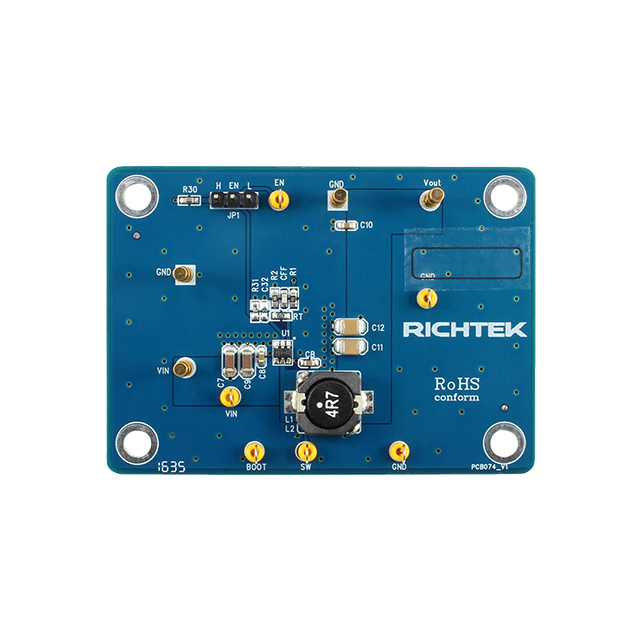

EVAL MODULE FOR RT6255AHGJ6F

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL MODULE FOR RT6255AHGJ6F

Technical Specifications

Parameters and characteristics for this part

Part	Regulator Topology	Frequency - Switching	Utilized IC / Part	Main Purpose	Board Type	Current - Output	Outputs and Type	Outputs and Type	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Voltage - Output	Package / Case	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Output Configuration	Synchronous Rectifier	Topology	Function	Voltage - Output (Min/Fixed)	Number of Outputs	Output Type	Voltage - Input (Min) [Min]	Voltage - Output (Max)	Supplier Device Package
Richtek USA Inc. EVB_RT6255AHGJ6F	Buck	500 kHz	RT6255A	DC/DC Step Down	Fully Populated	5 A	Non-Isolated	1	18 V	4.5 V	Board(s)	5 V
Richtek USA Inc. RT6255BHGJ8F		500 kHz				5 A							SOT-23-8 Thin TSOT-23-8	18 V	85 °C	-40 °C	Surface Mount	Positive		Buck	Step-Down	0.6 V	1	Adjustable	4.5 V	5 V	TSOT-23-8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.90

General part information

RT6255A ACOT® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board

Technical documentation and resources
