1896/5C SL002

Active

ALPHA WIRE

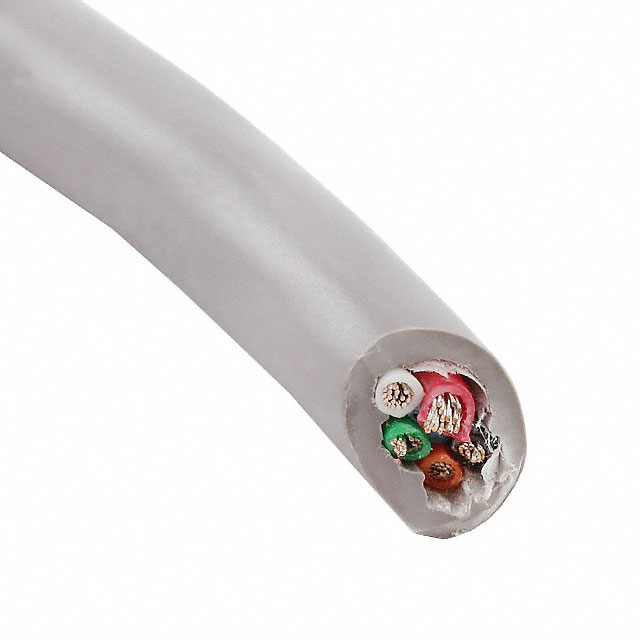

CABLE 5COND 20AWG SLATE 500'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 5COND 20AWG SLATE 500'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1896/5C SL002	1896/5C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	28	28
Conductor Strand [custom]	7	7
Jacket (Insulation) Diameter [diameter]	5.84 mm	5.84 mm
Jacket (Insulation) Diameter [diameter]	0.23 in	0.23 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in	0.02 in
Jacket (Insulation) Thickness	0.508 mm	0.508 mm
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	500 '	500 '
Length [x]	152.4 m	152.4 m
Number of Conductors	5	5
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	20 AWG	20 AWG

CABLE 5COND 20AWG SLATE 500'

Part	Cable Type	Usage	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Number of Conductors	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Voltage	Wire Gauge	Length	Length
ALPHA WIRE 1896/5C SL002	Multi-Conductor	Communication, Control	500 '	152.4 m	-20 C	80 C	Slate	28	7	0.02 in	0.508 mm	Copper, Tinned	5	Poly-Vinyl Chloride (PVC)	5.84 mm	0.23 in	Poly-Vinyl Chloride (PVC)	300 V	20 AWG
ALPHA WIRE 1896/5C SL001	Multi-Conductor	Communication, Control			-20 C	80 C	Slate	28	7	0.02 in	0.508 mm	Copper, Tinned	5	Poly-Vinyl Chloride (PVC)	5.84 mm	0.23 in	Poly-Vinyl Chloride (PVC)	300 V	20 AWG	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 0.99

General part information

5 Conductor Multi-Conductor Cable Slate 20 AWG 500.0' (152.4m)
