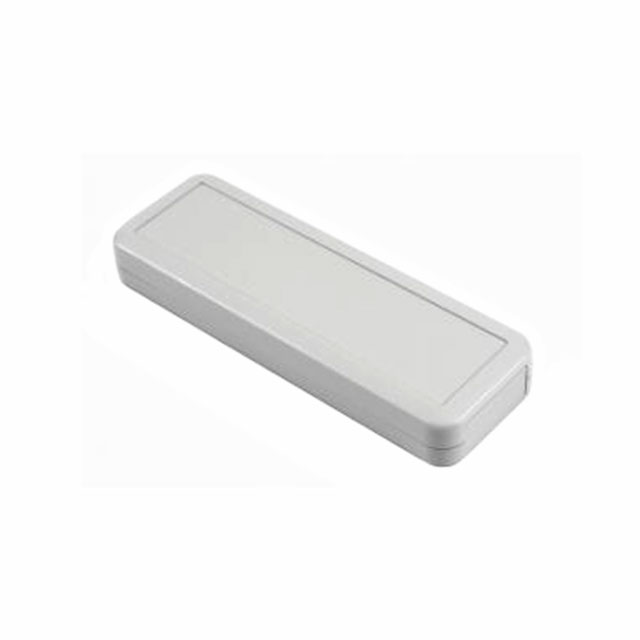

1552C5GY

Active

Hammond Manufacturing

BOX ABS GRAY 5.91"L X 1.97"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX ABS GRAY 5.91"L X 1.97"W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box ABS Gray Cover Included 5.910" L x 1.970" W (150.11mm x 50.04mm) X 0.870" (22.10mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1552C5GY	1552 Series

Accessory Type	-	Cable Gland Kit, Wall Mount
Area (L x W)	75 cm²	35.1 - 75 cm²
Area (L x W)	11.7 in²	5.44 - 11.7 in²
Color	Gray	Black, Gray
Container Type	Box	Box
Design	Cover Included	Cover Included
For Use With/Related Products	-	1552C Series, 1552D Series
Height [z]	0.87 "	0.87 - 1.18 "
Height [z]	22.1 mm	22.1 - 29.97 mm
Material	ABS	ABS
Material Flammability Rating	UL94 V-0	UL94 V-0
Ratings	IP54	IP54
Size / Dimension	-	50.8 mm
Size / Dimension	-	0.63 - 0.88 in
Size / Dimension	-	22.35 mm
Size / Dimension	-	16 mm
Size / Dimension [x]	5.91 "	3 - 5.91 "
Size / Dimension [x]	150.11 mm	76.2 - 150.11 mm
Size / Dimension [y]	50.04 mm	50.04 - 50.8 mm
Size / Dimension [y]	1.97 "	1.97 - 2 "
Thickness	2.03 mm	2.03 mm
Thickness	0.08 "	0.08 "
Type	-	Panel, End

1552C CABLE GLAND KIT GY

Part	For Use With/Related Products	Accessory Type	Height [z]	Height [z]	Color	Design	Ratings	Thickness	Thickness	Container Type	Area (L x W)	Area (L x W)	Material Flammability Rating	Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Type
Hammond Manufacturing 1552CPGKITGY	1552C Series	Cable Gland Kit
Hammond Manufacturing 1552DHBK	1552D Series	Wall Mount
Hammond Manufacturing 1552C1BK			0.87 "	22.1 mm	Black	Cover Included	IP54	2.03 mm	0.08 "	Box	35.1 cm²	5.44 in²	UL94 V-0	ABS
Hammond Manufacturing 1552D5GY			1.18 in	29.97 mm	Gray	Cover Included	IP54	2.03 mm	0.08 "	Box	75 cm²	11.7 in²	UL94 V-0	ABS	5.91 "	50.04 mm	150.11 mm	1.97 "
Hammond Manufacturing 1552DPLGY-10	1552D Series				Gray									ABS	3 "		76.2 mm	2 in	50.8 mm	0.88 in	22.35 mm	Panel, End
Hammond Manufacturing 1552CHBK	1552C Series	Wall Mount
Hammond Manufacturing 1552DPGKITGY	1552D Series	Cable Gland Kit
Hammond Manufacturing 1552C5BK			0.87 "	22.1 mm	Black	Cover Included	IP54	2.03 mm	0.08 "	Box	75 cm²	11.7 in²	UL94 V-0	ABS	5.91 "	50.04 mm	150.11 mm	1.97 "
Hammond Manufacturing 1552C1GY			0.87 "	22.1 mm	Gray	Cover Included	IP54	2.03 mm	0.08 "	Box	35.1 cm²	5.44 in²	UL94 V-0	ABS
Hammond Manufacturing 1552D1BK			1.18 in	29.97 mm	Black	Cover Included	IP54	2.03 mm	0.08 "	Box	35.1 cm²	5.44 in²	UL94 V-0	ABS
