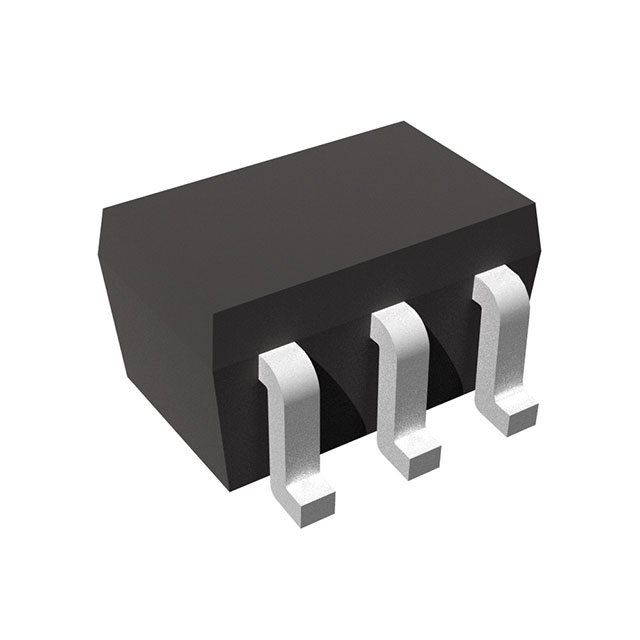

R3111Q292C-TR-FE

Active

Nisshinbo Micro Devices Inc

IC SUPERVISOR 1 CHANNEL SC88A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R3111Q292C-TR-FE

Active

Nisshinbo Micro Devices Inc

IC SUPERVISOR 1 CHANNEL SC88A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R3111Q292C-TR-FE

Mounting Type	Surface Mount
Number of Voltages Monitored	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	Totem Pole, Push-Pull
Package / Case	SC-70-5, 5-TSSOP, SOT-353
Reset	Active Low
Reset Timeout [Max]	100 µs
Supplier Device Package	SC-88A
Type	Voltage Detector
Voltage - Threshold	2.9 V

R3111 Series

Part	Reset	Type	Mounting Type	Output	Voltage - Threshold	Reset Timeout [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Voltages Monitored	Supplier Device Package	Package / Case
Nisshinbo Micro Devices Inc R3111N131C-TR-FE	Active Low	Voltage Detector	Surface Mount	Push-Pull Totem Pole	1.3 V	100 µs	85 °C	-40 °C	1	SOT-23-5	SC-74A SOT-753
Nisshinbo Micro Devices Inc R3111H421A-T1-FE	Active Low	Voltage Detector	Surface Mount	Open Drain or Open Collector	4.2 V	100 µs	85 °C	-40 °C	1	SOT-89-3	TO-243AA
Nisshinbo Micro Devices Inc R3111Q591C-TR-FE	Active Low	Voltage Detector	Surface Mount	Push-Pull Totem Pole	5.9 V	100 µs	85 °C	-40 °C	1	SC-82AB	SC-82A SOT-343
Nisshinbo Micro Devices Inc R3111Q292C-TR-FE	Active Low	Voltage Detector	Surface Mount	Push-Pull Totem Pole	2.9 V	100 µs	85 °C	-40 °C	1	SC-88A	5-TSSOP SC-70-5 SOT-353
Nisshinbo Micro Devices Inc R3111N171A-TR-FE	Active Low	Voltage Detector	Surface Mount	Open Drain or Open Collector	1.7 V	100 µs	85 °C	-40 °C	1	SOT-23-5	SC-74A SOT-753
Nisshinbo Micro Devices Inc R3111D201A-TR-FE	Active Low	Voltage Detector	Surface Mount	Open Drain or Open Collector	2 V	100 µs	85 °C	-40 °C	1	SON1612-6	SOT-563 SOT-666
Nisshinbo Micro Devices Inc R3111N121C-TR-FE	Active Low	Voltage Detector	Surface Mount	Push-Pull Totem Pole	1.2 V	100 µs	85 °C	-40 °C	1	SOT-23-5	SC-74A SOT-753
Nisshinbo Micro Devices Inc R3111H471C-T1-FE	Active Low	Voltage Detector	Surface Mount	Push-Pull Totem Pole	4.7 V	100 µs	85 °C	-40 °C	1	SOT-89-3	TO-243AA
Nisshinbo Micro Devices Inc R3111Q461A-TR-FE	Active Low	Voltage Detector	Surface Mount	Open Drain or Open Collector	4.6 V	100 µs	85 °C	-40 °C	1	SC-82AB	SC-82A SOT-343
Nisshinbo Micro Devices Inc R3111N101C-TR-FE	Active Low	Voltage Detector	Surface Mount	Push-Pull Totem Pole	1 V	100 µs	85 °C	-40 °C	1	SOT-23-5	SC-74A SOT-753

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.23
		6000	$ 0.22
		15000	$ 0.21
		30000	$ 0.20

Description

General part information

R3111 Series

Supervisor Push-Pull, Totem Pole 1 Channel SC-88A
