B-G473E-ZEST1S
ActiveDISCOVERY KIT WITH STM32G473, MOTOR CONTROLLER BOARD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | B-G473E-ZEST1S | B-G473E-ZEST1S Series |
|---|---|---|
| - | - | |
| Board Type | Evaluation Platform | Evaluation Platform |
| Contents | Board(s) | Board(s) |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4 |
| Interconnect System | ST Morpho | ST Morpho |
| Mounting Type | Fixed | Fixed |
| Platform | Discovery | Discovery |
| Suggested Programming Environment | STM32Cube, Keil MDK, IAR EW | STM32Cube, Keil MDK, IAR EW |
| Type | MCU 32-Bit | MCU 32-Bit |
| Utilized IC / Part | STM32G473QE | STM32G473QE |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
B-G473E-ZEST1S Series
Discovery kit with STM32G473, Motor Controller Board
| Part | Core Processor | Suggested Programming Environment | Contents | Type | Utilized IC / Part | Interconnect System | Platform | Board Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics B-G473E-ZEST1S | |||||||||
STMicroelectronics B-G473E-ZEST1S | ARM® Cortex®-M4 | IAR EW, Keil MDK, STM32Cube | Board(s) | MCU 32-Bit | STM32G473QE | ST Morpho | Discovery | Evaluation Platform | Fixed |
STMicroelectronics B-G473E-ZEST1S |
Description
General part information
B-G473E-ZEST1S Series

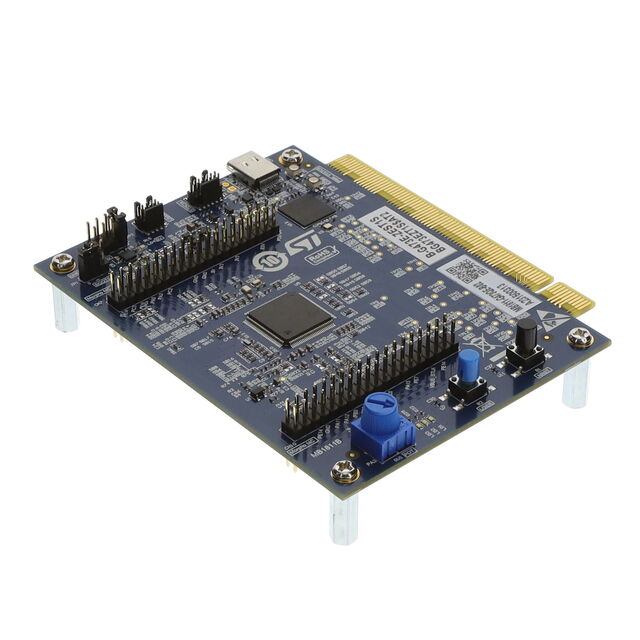

The B-G473E-ZEST1S Discovery kit is a part of the motor-control development platform supporting ZeST and HSO algorithms. B-G473E-ZEST1S is a control board with the STM32G473QET6 microcontroller in the ZeST Discovery pack and works together with a Power board such as STEVAL-LVLP01, an optional adaptor board such as B-ZEST-ADAPT1, and an accessories package such as B-MOTOR-PMSMA1.
The B-G473E-ZEST1S control board is connected to the power board or adaptor board through an embedded MC connector V2. B-G473E-ZEST1S can also support motor driver expansion boards X-NUCLEO-IHM08M1, X-NUCLEO-IHM09M1, and X-NUCLEO-IHM16M1 via the Morpho MC connector. STLINK-V3EC is integrated into the board, as an embedded in-circuit debugger and programmer for the STM32 MCU and the USB Virtual COM port bridge.
The STM32 ZeST algorithm is available for selected users only.
