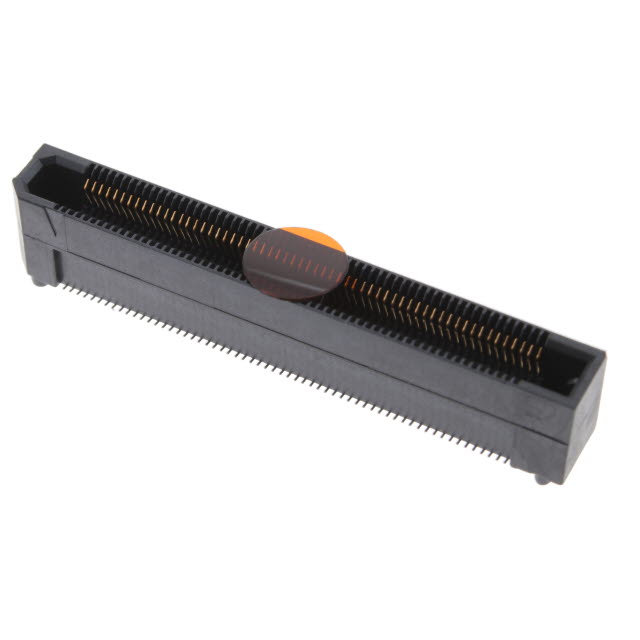

ERF5-060-07.0-L-DV-K-TR

Active

Samtec Inc.

CONN SOCKET 120POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET 120POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	ERF5-060-07.0-L-DV-K-TR

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board [z]	6.9 mm
Height Above Board [z]	0.272 in
Mated Stacking Heights	11 mm, 12 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	120
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Connector Type	Mated Stacking Heights	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Features	Pitch [x]	Pitch [x]	Contact Finish	Number of Positions	Height Above Board [z]	Height Above Board [z]
Samtec Inc. ERF5-060-07.0-L-DV-K-TR	Socket Center Strip Contacts	9 mm 11 mm 12 mm	Surface Mount	10 Áin	0.25 Ám	2	Board Guide Pick and Place	0.5 mm	0.02 in	Gold	120	6.9 mm	0.272 in
Samtec Inc. ERF5-060-05.0-S-DV-K-TR	Socket Center Strip Contacts	7 mm 9 mm 10 mm	Surface Mount	30 Áin	0.76 Ám	2	Board Guide Pick and Place	0.5 mm	0.02 in	Gold	120	4.9 mm	0.193 in
Samtec Inc. ERF5-060-05.0-L-DV-K-TR	Socket Center Strip Contacts	7 mm 9 mm 10 mm	Surface Mount	10 Áin	0.25 Ám	2	Board Guide Pick and Place	0.5 mm	0.02 in	Gold	120	4.9 mm	0.193 in
Samtec Inc. ERF5-060-05.0-L-DV-TR	Socket Center Strip Contacts	7 mm 9 mm 10 mm	Surface Mount	10 Áin	0.25 Ám	2	Board Guide	0.5 mm	0.02 in	Gold	120	4.9 mm	0.193 in
