10-2601.3172L
ActiveEAO

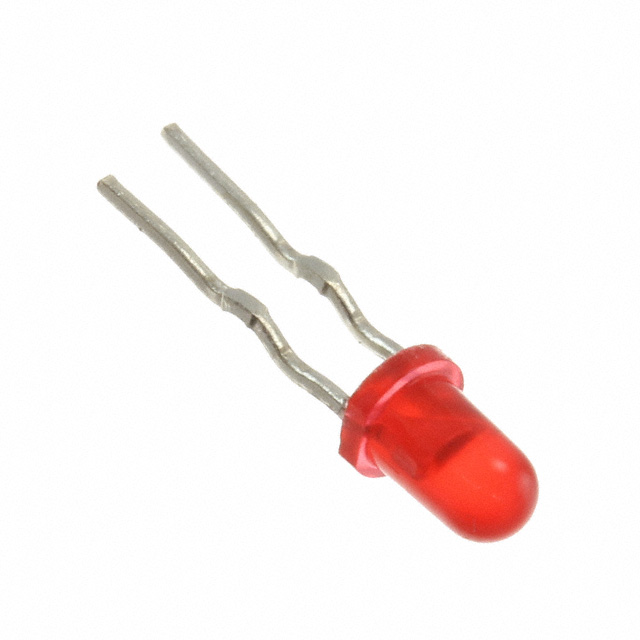

CONFIG SWITCH LAMP LED RED 2V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10-2601.3172L
ActiveEAO
CONFIG SWITCH LAMP LED RED 2V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10-2601.3172L | 10-2601 Series |
|---|---|---|
| - | - | |
| (Select First, Then Apply Filters) Compatible Series | - | 10 |
| (Select First, Then Apply Filters) Compatible Series | - | EAO |
| Color | Red | Yellow, Red, Amber |
| Configuration | - | Standard |
| Current - Test | - | 20 mA |
| Millicandela Rating | - | 160 mcd |
| Mounting Type | - | Through Hole |
| Package / Case | - | Radial |
| Type | LED | LED |
| Voltage | 2 V | 2 - 2.1 V |
| Voltage - Forward (Vf) (Typ) | - | 2 V |
| Wavelength - Dominant | - | 625 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.55 | |
| 10 | $ 1.34 | |||
| 25 | $ 1.26 | |||
| 50 | $ 1.21 | |||
| 100 | $ 1.16 | |||
| 250 | $ 1.10 | |||
10-2601 Series
CONFIG SWITCH LAMP LED YLW 2.1V
| Part | Voltage | Color | Type | (Select First, Then Apply Filters) Compatible Series | (Select First, Then Apply Filters) Compatible Series | Voltage - Forward (Vf) (Typ) | Package / Case | Mounting Type | Current - Test | Millicandela Rating | Configuration | Wavelength - Dominant |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
2.1 V | Yellow | LED | 10 | EAO | ||||||||
2 V | Red | LED | ||||||||||
2 V | Amber | LED | 10 | EAO | ||||||||
Red | 2 V | Radial | Through Hole | 20 mA | 160 mcd | Standard | 625 nm | |||||
2 V | Red | LED | 10 | EAO | ||||||||
Description
General part information
10-2601 Series
Configurable Switch Lamp LED Red 2V
