Q-1T0440005003i

Active

Amphenol Custom Cable

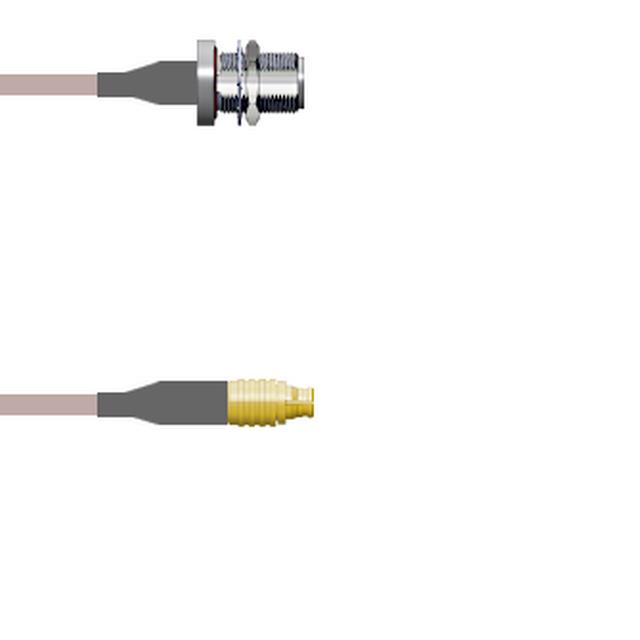

CBL ASSY SMP-NTYPE PLUG-JACK 3"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1T0440005003i

Active

Amphenol Custom Cable

CBL ASSY SMP-NTYPE PLUG-JACK 3"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1T0440005003i

1st Connector	SMP Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	3 in
Length	76.2 mm
Overall Impedance	50 Ohms
Style	SMP to N-Type

Q-1T0440 Series

Part	Features	Frequency - Max [Max]	Cable Type	Color	Style	1st Contact Gender	2nd Contact Gender	2nd Connector Mounting Feature	2nd Connector Mounting Type	1st Connector Mounting Type	Length	Length	Length	1st Connector	Overall Impedance	2nd Connector
Amphenol Custom Cable Q-1T04400032.5M	Shielded	11 GHz	RG-174	Black	SMP to N-Type	Male	Female	Bulkhead - Front Side Nut	Panel Mount	Free Hanging (In-Line)	8.2 '	98.4 in	2.5 m	SMP Plug	50 Ohms	N-Type Jack
Amphenol Custom Cable Q-1T0440005001M	Shielded	11 GHz	RG-316	Copper	SMP to N-Type	Male	Female	Bulkhead - Front Side Nut	Panel Mount	Free Hanging (In-Line)	3.3 ft	39.4 in	1 m	SMP Plug	50 Ohms	N-Type Jack
Amphenol Custom Cable Q-1T0440003006i	Shielded	11 GHz	RG-174	Black	SMP to N-Type	Male	Female	Bulkhead - Front Side Nut	Panel Mount	Free Hanging (In-Line)		6 in	152.4 mm	SMP Plug	50 Ohms	N-Type Jack
Amphenol Custom Cable Q-1T0440003009i	Shielded	11 GHz	RG-174	Black	SMP to N-Type	Male	Female	Bulkhead - Front Side Nut	Panel Mount	Free Hanging (In-Line)		9 "	228.6 mm	SMP Plug	50 Ohms	N-Type Jack
Amphenol Custom Cable Q-1T0440005003i	Shielded	11 GHz	RG-316	Copper	SMP to N-Type	Male	Female	Bulkhead - Front Side Nut	Panel Mount	Free Hanging (In-Line)		3 in	76.2 mm	SMP Plug	50 Ohms	N-Type Jack
Amphenol Custom Cable Q-1T0440003003i	Shielded	11 GHz	RG-174	Black	SMP to N-Type	Male	Female	Bulkhead - Front Side Nut	Panel Mount	Free Hanging (In-Line)		3 in	76.2 mm	SMP Plug	50 Ohms	N-Type Jack
Amphenol Custom Cable Q-1T0440003048i	Shielded	11 GHz	RG-174	Black	SMP to N-Type	Male	Female	Bulkhead - Front Side Nut	Panel Mount	Free Hanging (In-Line)	4 ft	48 in	1200 mm	SMP Plug	50 Ohms	N-Type Jack
Amphenol Custom Cable Q-1T0440003.75M	Shielded	11 GHz	RG-174	Black	SMP to N-Type	Male	Female	Bulkhead - Front Side Nut	Panel Mount	Free Hanging (In-Line)		29.53 "	750 mm	SMP Plug	50 Ohms	N-Type Jack
Amphenol Custom Cable Q-1T04400031.5M	Shielded	11 GHz	RG-174	Black	SMP to N-Type	Male	Female	Bulkhead - Front Side Nut	Panel Mount	Free Hanging (In-Line)	4.9 ft	59.1 in	1.5 m	SMP Plug	50 Ohms	N-Type Jack
Amphenol Custom Cable Q-1T0440003060i	Shielded	11 GHz	RG-174	Black	SMP to N-Type	Male	Female	Bulkhead - Front Side Nut	Panel Mount	Free Hanging (In-Line)	5 ft	5 '	1.5 m	SMP Plug	50 Ohms	N-Type Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 113.30
		25	$ 111.11
		50	$ 108.92
		100	$ 106.73
		250	$ 104.54

Description

General part information

Q-1T0440 Series

Cable Assembly Coaxial SMP to N-Type RG-316 3.000" (76.20mm)

Documents

Technical documentation and resources

No documents available
